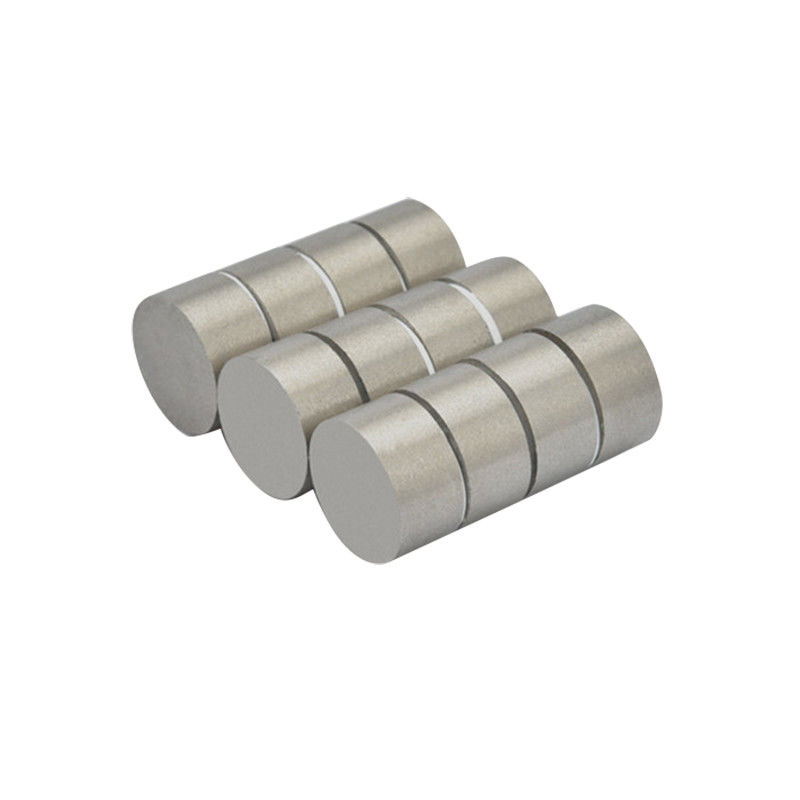

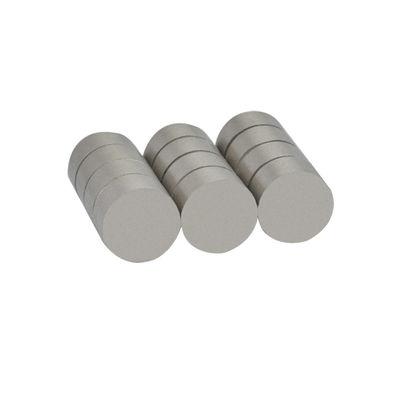

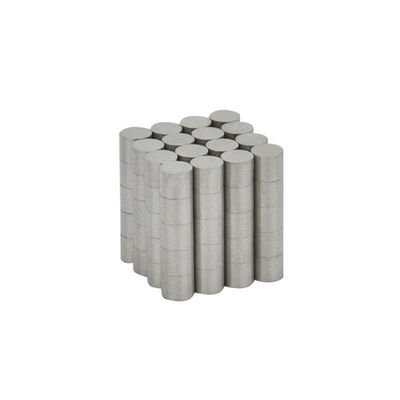

Customized Coated Samarium Cobalt Magnet for National Defense Application

Product Description:

These magnets are characterized by high magnetism, and are also resistant to both rust and high temperature.
These magnets represent the highest magnetic energy product after neodymium magnets. They are also highly
corrosion-resistant without being rustproofed and offer excellent temperature characteristics as well. These are
rare-earth magnets resistant to high temperature.
These sintered products consist mainly of samarium (Sm) and cobalt (Co), and are available with two kinds of material:
1-5 series and 2-17 series. The 1-5 series has high magnetic coercive force (Hcj), but is easy to magnetize and adjust
magnetism. Magnets of this series also exhibit relatively stable performance under changing temperature. The 2-17
series has high magnetism and offers excellent temperature stability in magnetic characteristics as well.
Samarium-cobalt magnets are relatively low in mechanical strength. Caution should therefore be exercised in handling
these magnets to prevent chipping and cracking.

Samarium Cobalt Magnets
Samarium cobalt magnets (SmCo) are composed of samarium, cobalt and iron. These rare earth magnets are extremely strong for their small size, metallic in appearance and found in simple shapes such as rings, blocks and discs.

Manufacturing - In general, the elements are melted together and milled into a powder that is dry-pressed
shape in the presence of a magnetic field. The material is then sintered, aged, ground to dimension, magnetized and tested. They are called “rare earth” magnets because the elements of samarium cobalt
classified as such in the lanthanides section of Periodic Table of the Elements.

Attributes of Samarium Cobalt
High resistance to demagnetization
High energy (magnetic strength is strong for its size)
Good temperature stability
Pricing for samarium cobalt is market sensitive

Features:

• Product Name: Samarium Cobalt Magnet
• Material: Samarium Cobalt
• Coating: As Customized
• Pull Force: As Customer Requirement
• Corrosion Resistance: High
• Application: Spaceflight, National Defense, Microwave, Sensors

 Magnetic Properites Of SmCo Magnet:

Grade	Remanence (Br)		Coercivity (Hcb)		Intrinsic Coercivity (Hcj)		Max Energy Product (BH)max		Curie Temperature (TC)	Max Work Temp (TW)	Temperature Coefficient of Br (Br)		Temperature Coefficient of Hcj (Hcj)
	T	kGS	kA/m	KOe	KA/m	KOe	KJ/m3	MGOe	℃	℃	%℃		%℃
YX-16s	0.79-0.84	7.9-8.4	620-660	7.8-8.3	≥1830	≥23	118-135	15-17	750	250	-0.035		-0.28
YX-18s	0.84-0.89	8.4-8.9	660-700	8.3-8.8	≥1830	≥23	135-151	17-19	750	250	-0.040		-0.28
YX-20s	0.89-0.93	8.9-9.3	684-732	8.6-9.2	≥1830	≥23	150-167	19-21	750	250	-0.045		-0.28
YX-22s	0.92-0.96	9.2-9.6	710-756	8.9-9.5	≥1830	≥23	167-183	21-23	750	250	-0.045		-0.28
YX-24s	0.96-1.00	9.6-10.0	740-788	9.3-9.9	≥1830	≥23	183-199	23-25	750	250	-0.045		-0.28
LTc(YX-10)	0.62-0.66	6.2-6.6	485-517	6.1-6.5	≥1830	≥23	75-88	9.5-11	750	300	Temp Range	Br Temp Coefficient％℃
										20-100℃		+0.0156％℃
										100-200℃		+0.0087％℃
										200-300℃		+0.0007％℃
YX-12	0.70-0.74	7.0-7.4	358-390	4.5-4.9	358-478	4.5-6	80-103	10-13	450	200
YXG-24H	0.95-1.02	9.5-10.2	692-764	8.7-9.6	≥1990	≥25	175-191	22-24	800	350	-0.025		-0.20
YXG-26H	1.02-1.05	10.2-10.5	748-796	9.4-10.0	≥1990	≥25	191-207	24-26	800	350	-0.030		-0.20
YXG-28H	1.03-1.08	10.3-10.8	756-812	9.5-10.2	≥1990	≥25	207-220	26-28	800	350	-0.035		-0.20
YXG-30H	1.08-1.10	10.8-11.0	788-835	9.9-10.5	≥1990	≥25	220-240	28-30	800	350	-0.035		-0.20
YXG-32H	1.10-1.13	11.0-11.3	812-860	10.2-10.8	≥1990	≥25	230-255	29-32	800	350	-0.035		-0.20
YXG-22	0.93-0.97	9.3-9.7	676-740	8.5-9.3	≥1433	≥18	160-183	20-23	800	300	-0.020		-0.20
YXG-24	0.95-1.02	9.5-10.2	692-764	8.7-9.6	≥1433	≥18	175-191	22-24	800	300	-0.025		-0.20
YXG-26	1.02-1.05	10.2-10.5	748-796	9.4-10.0	≥1433	≥18	191-207	24-26	800	300	-0.030		-0.20
YXG-28	1.03-1.08	10.3-10.8	756-812	9.5-10.2	≥1433	≥18	207-220	26-28	800	300	-0.035		-0.20
YXG-30	1.08-1.10	10.8-11.0	788-835	9.9-10.5	≥1433	≥18	220-240	28-30	800	300	-0.035		-0.20
YXG-32	1.10-1.13	11.0-11.3	812-860	10.2-10.8	≥1433	≥18	230-255	29-32	800	300	-0.035		-0.20
YXG-26M	1.02-1.05	10.2-10.5	676-780	8.5-9.8	955-1433	12-18	191-207	24-26	800	300	-0.035		-0.20
YXG-28M	1.03-1.08	10.3-10.8	676-796	8.5-10.0	955-1433	12-18	207-220	26-28	800	300	-0.035		-0.20
YXG-30M	1.08-1.10	10.8-11.0	676-835	8.5-10.5	955-1433	12-18	220-240	28-30	800	300	-0.035		-0.20
YXG-32M	1.10-1.13	11.0-11.3	676-852	8.5-10.7	955-1433	12-18	230-255	29-32	800	300	-0.035		-0.20
YXG-24L	0.95-1.02	9.5-10.2	541-716	6.8-9.0	636-955	8-12	175-191	22-24	800	250	-0.025		-0.20
YXG-26L	1.02-1.05	10.2-10.5	541-748	6.8-9.4	636-955	8-12	191-207	24-26	800	250	-0.035		-0.20
YXG-28L	1.03-1.08	10.3-10.8	541-764	6.8-9.6	636-955	8-12	207-220	26-28	800	250	-0.035		-0.20
YXG-30L	1.08-1.15	10.8-11.5	541-796	6.8-10.0	636-955	8-12	220-240	28-30	800	250	-0.035		-0.20
YXG-32L	1.10-1.15	11.0-11.5	541-812	6.8-10.2	636-955	8-12	230-255	29-32	800	250	-0.035		-0.20
LTC(YXG-22)	0.94-0.98	9.4-9.8	668-716	8.4-9.0	≥1433	≥18	167-183	21-23	840	300	Temp Range	Br Temp Coefficient％℃
										–50-25℃		﹢0.005％℃
										20-100℃		-0.008％℃
										100-200℃		-0.008％℃
										200-300℃		-0.011％℃

Physical Properties Of SmCo Magnet:

Technical Parameters:

Manufacturing process for magnets (outline):

Applications:

UNMAG Samarium Cobalt Magnets, made of Smco material, are well known for their excellent corrosion resistance and high temperature resistance, up to 250-500°C. This makes them a perfect choice for high temperature Motors and Generators,military applications,magnetic pump couplings,oil drilling applications,cryogenic applications, spaceflight, national defense, microwave, sensors and other demanding applications.

UNMAG is a leading provider of Samarium Cobalt Magnets, offering a wide range of products with different grades, such as YX-24H, YX-30H, YXG-28, YXG-30, and YXG-32. All our products are manufactured using the highest quality standards in China.

Our Samarium Cobalt Magnets are carefully designed to provide superior performance and reliability. They offer excellent temperature stability, magnetic stability, and superior corrosion resistance, making them ideal for a variety of applications.

At UNMAG, we take pride in providing superior quality Samarium Cobalt Magnets that are designed to meet the demanding requirements of spaceflight, national defense, microwave, sensors and other applications. We strive to consistently provide the highest level of quality and service to our customers.

Customization:

Support and Services:

Samarium Cobalt Magnet Technical Support and Service

• 24/7 customer service and technical support
• Troubleshooting and problem solving
• Product installation and configuration
• Product maintenance and updates
• Warranty and replacement services
• Free software or hardware upgrades

Packing and Shipping:

• Samarium Cobalt Magnets are packaged in a sturdy cardboard box.
• The box is lined with plastic wrap or bubble wrap to protect the product during shipping.
• The box is sealed with packing tape to ensure the product is not damaged during shipping.
• The package is labeled with the product name, quantity, and shipping address.
• Samarium Cobalt Magnets are shipped via UPS, FedEx, or USPS.
