Sm2Co17 Alloy with High Corrosion Resistance and Operating Temperature of 250-500°C

Product Description:

Samarium Cobalt Magnets (SmCo) are permanent magnet materials made of Samarium and Cobalt, offering high magnetic properties and heat resistance. They come in five grades, YX-24H, YX-30H, YXG-28, YXG-30 and YXG-32, all of which provide high corrosion resistance and can be customized with coatings. Samarium Cobalt Magnets can be used in a variety of applications such as spaceflight, national defense, microwave and sensors.

Features:

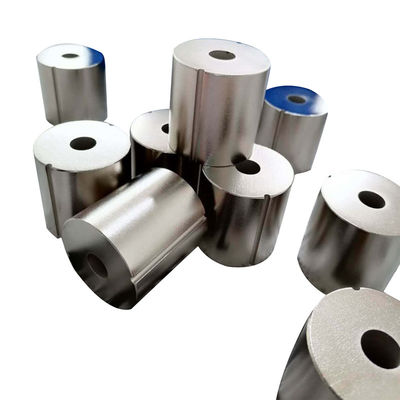

• Product Name: Ring Magnets Smco Magnet, Sm2Co17, Samarium Cobalt Magnets
• Corrosion Resistance: High
• Application: Spaceflight, National Defense, Microwave, Sensors
• Coating: As Customized
• Grade: YX-24H, YX-30H, YXG-28, YXG-30, YXG-32
• Pull Force: As Customer Requirement

Magnetic Properites Of SmCo Magnet:

Grade	Remanence (Br)		Coercivity (Hcb)		Intrinsic Coercivity (Hcj)		Max Energy Product (BH)max		Curie Temperature (TC)	Max Work Temp (TW)	Temperature Coefficient of Br (Br)		Temperature Coefficient of Hcj (Hcj)
	T	kGS	kA/m	KOe	KA/m	KOe	KJ/m3	MGOe	℃	℃	%℃		%℃
YX-16s	0.79-0.84	7.9-8.4	620-660	7.8-8.3	≥1830	≥23	118-135	15-17	750	250	-0.035		-0.28
YX-18s	0.84-0.89	8.4-8.9	660-700	8.3-8.8	≥1830	≥23	135-151	17-19	750	250	-0.040		-0.28
YX-20s	0.89-0.93	8.9-9.3	684-732	8.6-9.2	≥1830	≥23	150-167	19-21	750	250	-0.045		-0.28
YX-22s	0.92-0.96	9.2-9.6	710-756	8.9-9.5	≥1830	≥23	167-183	21-23	750	250	-0.045		-0.28
YX-24s	0.96-1.00	9.6-10.0	740-788	9.3-9.9	≥1830	≥23	183-199	23-25	750	250	-0.045		-0.28
LTc(YX-10)	0.62-0.66	6.2-6.6	485-517	6.1-6.5	≥1830	≥23	75-88	9.5-11	750	300	Temp Range	Br Temp Coefficient％℃
										20-100℃		+0.0156％℃
										100-200℃		+0.0087％℃
										200-300℃		+0.0007％℃
YX-12	0.70-0.74	7.0-7.4	358-390	4.5-4.9	358-478	4.5-6	80-103	10-13	450	200
YXG-24H	0.95-1.02	9.5-10.2	692-764	8.7-9.6	≥1990	≥25	175-191	22-24	800	350	-0.025		-0.20
YXG-26H	1.02-1.05	10.2-10.5	748-796	9.4-10.0	≥1990	≥25	191-207	24-26	800	350	-0.030		-0.20
YXG-28H	1.03-1.08	10.3-10.8	756-812	9.5-10.2	≥1990	≥25	207-220	26-28	800	350	-0.035		-0.20
YXG-30H	1.08-1.10	10.8-11.0	788-835	9.9-10.5	≥1990	≥25	220-240	28-30	800	350	-0.035		-0.20
YXG-32H	1.10-1.13	11.0-11.3	812-860	10.2-10.8	≥1990	≥25	230-255	29-32	800	350	-0.035		-0.20
YXG-22	0.93-0.97	9.3-9.7	676-740	8.5-9.3	≥1433	≥18	160-183	20-23	800	300	-0.020		-0.20
YXG-24	0.95-1.02	9.5-10.2	692-764	8.7-9.6	≥1433	≥18	175-191	22-24	800	300	-0.025		-0.20
YXG-26	1.02-1.05	10.2-10.5	748-796	9.4-10.0	≥1433	≥18	191-207	24-26	800	300	-0.030		-0.20
YXG-28	1.03-1.08	10.3-10.8	756-812	9.5-10.2	≥1433	≥18	207-220	26-28	800	300	-0.035		-0.20
YXG-30	1.08-1.10	10.8-11.0	788-835	9.9-10.5	≥1433	≥18	220-240	28-30	800	300	-0.035		-0.20
YXG-32	1.10-1.13	11.0-11.3	812-860	10.2-10.8	≥1433	≥18	230-255	29-32	800	300	-0.035		-0.20
YXG-26M	1.02-1.05	10.2-10.5	676-780	8.5-9.8	955-1433	12-18	191-207	24-26	800	300	-0.035		-0.20
YXG-28M	1.03-1.08	10.3-10.8	676-796	8.5-10.0	955-1433	12-18	207-220	26-28	800	300	-0.035		-0.20
YXG-30M	1.08-1.10	10.8-11.0	676-835	8.5-10.5	955-1433	12-18	220-240	28-30	800	300	-0.035		-0.20
YXG-32M	1.10-1.13	11.0-11.3	676-852	8.5-10.7	955-1433	12-18	230-255	29-32	800	300	-0.035		-0.20
YXG-24L	0.95-1.02	9.5-10.2	541-716	6.8-9.0	636-955	8-12	175-191	22-24	800	250	-0.025		-0.20
YXG-26L	1.02-1.05	10.2-10.5	541-748	6.8-9.4	636-955	8-12	191-207	24-26	800	250	-0.035		-0.20
YXG-28L	1.03-1.08	10.3-10.8	541-764	6.8-9.6	636-955	8-12	207-220	26-28	800	250	-0.035		-0.20
YXG-30L	1.08-1.15	10.8-11.5	541-796	6.8-10.0	636-955	8-12	220-240	28-30	800	250	-0.035		-0.20
YXG-32L	1.10-1.15	11.0-11.5	541-812	6.8-10.2	636-955	8-12	230-255	29-32	800	250	-0.035		-0.20
LTC(YXG-22)	0.94-0.98	9.4-9.8	668-716	8.4-9.0	≥1433	≥18	167-183	21-23	840	300	Temp Range	Br Temp Coefficient％℃
										–50-25℃		﹢0.005％℃
										20-100℃		-0.008％℃
										100-200℃		-0.008％℃
										200-300℃		-0.011％℃

Physical Properties Of SmCo Magnet:

Technical Parameters:

Manufacturing process for magnets (outline):

Applications:

UNMAG brand Samarium Cobalt Magnet, referred to as Sm2Co17 or Smco Magnet, is one of the most popular rare earth magnets. It is made of a samarium and cobalt alloy, and its grade can be YX-24H, YX-30H, YXG-28, YXG-30, and YXG-32. It has superior heat resistance and outstanding corrosion resistance, making it ideal for many applications in the automotive, medical, aerospace, and consumer electronics fields. Its pull force can be customized according to customer requirements, and its magnetization and coating can also be customized. Smco Magnet is widely used in motors, sensors, magnetic separators, and other industrial products. With its high magnetic properties, it is also becoming increasingly popular in the home appliance, power tool, and audio speaker industries. UNMAG Samarium Cobalt Magnet is an excellent choice for your applications.

Customization:

Customized Samarium Cobalt (Smco) Magnets from UNMAG

UNMAG offers custom-made Samarium Cobalt (Smco) magnets.

Brand Name: UNMAG
Place of Origin: China
Corrosion Resistance: High
Magnetization: As Customized
Operating Temperature: 250-500°C
Coating: As Customized
Application: Spaceflight,National Defense,Microwave,Sensors

Our Smco magnets are perfect for your personalized project needs. With our custom Smco magnets, you can achieve your desired size, shape, or magnetic properties. Our Samarium Cobalt magnets are specifically designed for applications that require high temperature resistance and corrosion resistance. From ring magnets to other special shapes, our Smco magnets are sure to meet your needs.

Support and Services:

• We provide free technical support services for all Samarium Cobalt Magnet products.
• We offer a one-year warranty on all our Samarium Cobalt Magnet products.
• We provide a wide range of repair and replacement services for our Samarium Cobalt Magnet products.
• We offer on-site installation and maintenance services for our Samarium Cobalt Magnet products.
• We provide troubleshooting and technical advice to customers who are having problems with their Samarium Cobalt Magnet products.
• We offer free software updates and upgrades for our Samarium Cobalt Magnet products.

Packing and Shipping:
