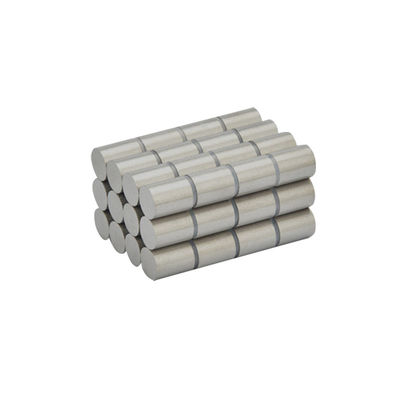

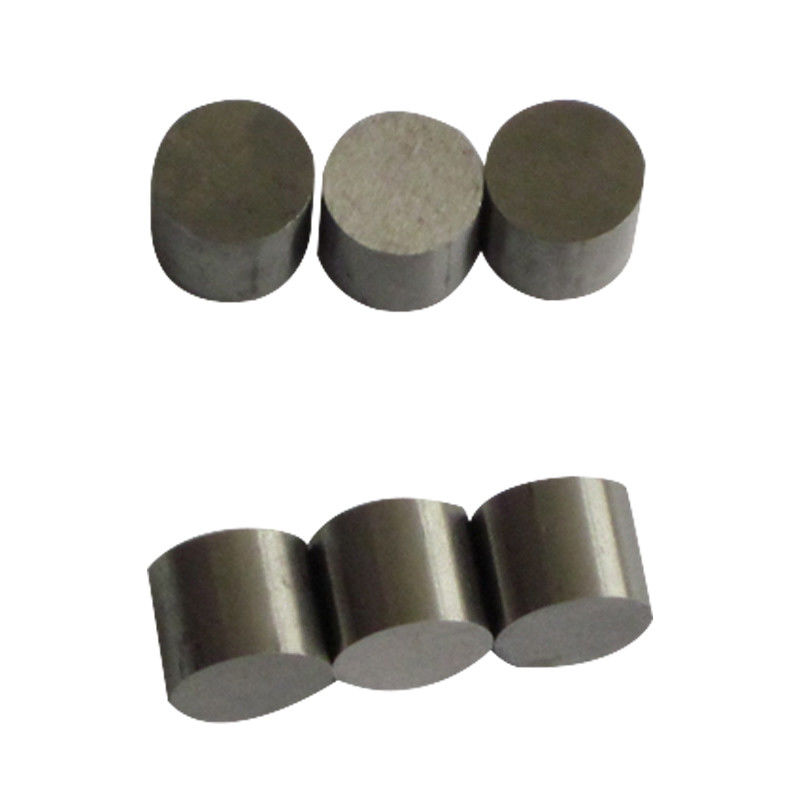

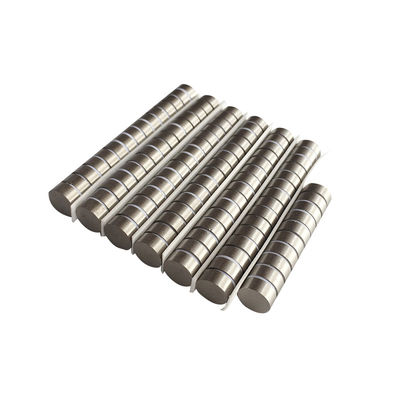

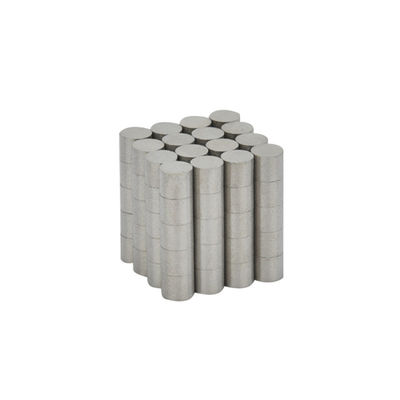

Customized Magnetization National Defense Smco Magnets

Product Description:

Samarium Cobalt Magnet is a type of rare earth magnet composed of samarium and cobalt. It has a high level of heat resistance and corrosion resistance, and is ideal for applications where low temperature coefficient of magnetic properties is required. Samarium Cobalt Magnet is available in various grades, including YX-24H, YX-30H, YXG-28, YXG-30, YXG-32, and can be fabricated to custom coating requirements. It can be used in operating temperatures from 250-500°C, making it a great choice for many applications.

These Samarium Cobalt magnets are powerful, and offer a great combination of high heat resistance and high corrosion resistance. They are often used to make Ring Magnets Smco Magnet, and can be customized with various coatings. The grades available include YX-24H, YX-30H, YXG-28, YXG-30, YXG-32, giving you a wide range of options to meet your needs.

Samarium Cobalt magnets are the perfect choice for applications that require high heat and corrosion resistance, as well as low temperature coefficient of magnetic properties. With operating temperatures from 250-500°C, and the option to customize coating, these magnets are sure to meet your needs.



Features:

• Product Name: Samarium Cobalt Magnet
• Grade: YX-24H, YX-30H, YXG-28, YXG-30, YXG-32
• Material: Samarium Cobalt
• Magnetization: As Customized
• Corrosion Resistance: High
• Pull Force: As Customer Requirement
• Ring Magnets Smco Magnet
• Samarium Cobalt Magnets



Magnetic Properites Of SmCo Magnet:

Grade	Remanence (Br)		Coercivity (Hcb)		Intrinsic Coercivity (Hcj)		Max Energy Product (BH)max		Curie Temperature (TC)	Max Work Temp (TW)	Temperature Coefficient of Br (Br)		Temperature Coefficient of Hcj (Hcj)
	T	kGS	kA/m	KOe	KA/m	KOe	KJ/m3	MGOe	℃	℃	%℃		%℃
YX-16s	0.79-0.84	7.9-8.4	620-660	7.8-8.3	≥1830	≥23	118-135	15-17	750	250	-0.035		-0.28
YX-18s	0.84-0.89	8.4-8.9	660-700	8.3-8.8	≥1830	≥23	135-151	17-19	750	250	-0.040		-0.28
YX-20s	0.89-0.93	8.9-9.3	684-732	8.6-9.2	≥1830	≥23	150-167	19-21	750	250	-0.045		-0.28
YX-22s	0.92-0.96	9.2-9.6	710-756	8.9-9.5	≥1830	≥23	167-183	21-23	750	250	-0.045		-0.28
YX-24s	0.96-1.00	9.6-10.0	740-788	9.3-9.9	≥1830	≥23	183-199	23-25	750	250	-0.045		-0.28
LTc(YX-10)	0.62-0.66	6.2-6.6	485-517	6.1-6.5	≥1830	≥23	75-88	9.5-11	750	300	Temp Range	Br Temp Coefficient％℃
										20-100℃		+0.0156％℃
										100-200℃		+0.0087％℃
										200-300℃		+0.0007％℃
YX-12	0.70-0.74	7.0-7.4	358-390	4.5-4.9	358-478	4.5-6	80-103	10-13	450	200
YXG-24H	0.95-1.02	9.5-10.2	692-764	8.7-9.6	≥1990	≥25	175-191	22-24	800	350	-0.025		-0.20
YXG-26H	1.02-1.05	10.2-10.5	748-796	9.4-10.0	≥1990	≥25	191-207	24-26	800	350	-0.030		-0.20
YXG-28H	1.03-1.08	10.3-10.8	756-812	9.5-10.2	≥1990	≥25	207-220	26-28	800	350	-0.035		-0.20
YXG-30H	1.08-1.10	10.8-11.0	788-835	9.9-10.5	≥1990	≥25	220-240	28-30	800	350	-0.035		-0.20
YXG-32H	1.10-1.13	11.0-11.3	812-860	10.2-10.8	≥1990	≥25	230-255	29-32	800	350	-0.035		-0.20
YXG-22	0.93-0.97	9.3-9.7	676-740	8.5-9.3	≥1433	≥18	160-183	20-23	800	300	-0.020		-0.20
YXG-24	0.95-1.02	9.5-10.2	692-764	8.7-9.6	≥1433	≥18	175-191	22-24	800	300	-0.025		-0.20
YXG-26	1.02-1.05	10.2-10.5	748-796	9.4-10.0	≥1433	≥18	191-207	24-26	800	300	-0.030		-0.20
YXG-28	1.03-1.08	10.3-10.8	756-812	9.5-10.2	≥1433	≥18	207-220	26-28	800	300	-0.035		-0.20
YXG-30	1.08-1.10	10.8-11.0	788-835	9.9-10.5	≥1433	≥18	220-240	28-30	800	300	-0.035		-0.20
YXG-32	1.10-1.13	11.0-11.3	812-860	10.2-10.8	≥1433	≥18	230-255	29-32	800	300	-0.035		-0.20
YXG-26M	1.02-1.05	10.2-10.5	676-780	8.5-9.8	955-1433	12-18	191-207	24-26	800	300	-0.035		-0.20
YXG-28M	1.03-1.08	10.3-10.8	676-796	8.5-10.0	955-1433	12-18	207-220	26-28	800	300	-0.035		-0.20
YXG-30M	1.08-1.10	10.8-11.0	676-835	8.5-10.5	955-1433	12-18	220-240	28-30	800	300	-0.035		-0.20
YXG-32M	1.10-1.13	11.0-11.3	676-852	8.5-10.7	955-1433	12-18	230-255	29-32	800	300	-0.035		-0.20
YXG-24L	0.95-1.02	9.5-10.2	541-716	6.8-9.0	636-955	8-12	175-191	22-24	800	250	-0.025		-0.20
YXG-26L	1.02-1.05	10.2-10.5	541-748	6.8-9.4	636-955	8-12	191-207	24-26	800	250	-0.035		-0.20
YXG-28L	1.03-1.08	10.3-10.8	541-764	6.8-9.6	636-955	8-12	207-220	26-28	800	250	-0.035		-0.20
YXG-30L	1.08-1.15	10.8-11.5	541-796	6.8-10.0	636-955	8-12	220-240	28-30	800	250	-0.035		-0.20
YXG-32L	1.10-1.15	11.0-11.5	541-812	6.8-10.2	636-955	8-12	230-255	29-32	800	250	-0.035		-0.20
LTC(YXG-22)	0.94-0.98	9.4-9.8	668-716	8.4-9.0	≥1433	≥18	167-183	21-23	840	300	Temp Range	Br Temp Coefficient％℃
										–50-25℃		﹢0.005％℃
										20-100℃		-0.008％℃
										100-200℃		-0.008％℃
										200-300℃		-0.011％℃



Physical Properties Of SmCo Magnet:

Parameter Name	Unit	SmCo5	Sm2Co17
Density	g/cm³	8.2 ~ 8.4	8.3 ~ 8.5
Curie Temperature	℃	700 ~ 750	800 ~ 850
Max. Operating Temperature 250 350	℃	250	350
Temperature Coefficient Of Br -0.05 -0.03	%/℃	-0.05	-0.03
Vickers Hardness 450 ~ 500 550 ~600	HV	450 ~ 500	550 ~600
Electronic Ressistivity	Ω.cm	5 ~ 6 x 10(-5)	8 ~ 9 x 10(-5)
Thermal Conductivity	W/mK	12	13



Technical Parameters:

Attributes	Value
Corrosion Resistance	High
Coating	As Customized
Operating Temperature	250-500°C
Grade	YX-24H, YX-30H, YXG-28, YXG-30, YXG-32
Pull Force	As Customer Requirement
Heat Resistance	High
Material	Samarium Cobalt
Application	Spaceflight,National Defense,Microwave,Sensors
Magnetization	As Customized



Applications:

UNMAG Samarium Cobalt Magnet (SmCo) is a cost-effective choice for applications requiring high operating temperature (up to 250-500°C) and high corrosion resistance. It offers a variety of magnetizations and coatings as customized, making it an ideal choice for spaceflight, national defense, microwave and sensors.

UNMAG SmCo Ring Magnets are available in a wide range of sizes and shapes, and have a wide range of uses in aerospace, military, medical, and other high-end industries. It has a high coercive force, good temperature stability, and excellent corrosion resistance. It is ideal for applications requiring strong permanent magnetism and high temperature stability.

UNMAG SmCo magnets are manufactured to the highest quality standards to ensure reliability and performance. All products are manufactured to meet customer-specific requirements and can be customized to meet individual needs. Our experienced team of engineers can help you to select the right samarium cobalt magnets for your application.

Customization:

Support and Services:

At Samarium Cobalt Magnet, we provide technical support and services to ensure that our customers receive the best possible experience with our products. Our technical team is available to answer any questions and provide assistance 24/7. We are dedicated to providing the highest quality of customer service and technical support.

We offer the following technical support and services:

• Troubleshooting and diagnostics
• Software installation and updates
• Hardware repair and maintenance
• Product customization
• On-site technical support
• Remote technical support
• Product training and education

Our goal is to provide our customers with the best possible experience with our products. If you have any questions or need assistance, please do not hesitate to contact us.

Packing and Shipping:

Samarium cobalt magnet is a powerful permanent magnet made of samarium and cobalt materials. It is used in a variety of applications such as motors, actuators, and sensors.

Samarium cobalt magnet should be packed properly to avoid damages during shipment. The magnet should be sealed in a container that is resistant to environmental factors such as moisture and dust. It should also be protected from vibration and shock. The container should be properly labeled with the item description, weight, and origin information.

Samarium cobalt magnet should be shipped via a reliable carrier that provides tracking information. The shipment should be insured to protect against loss or damage. The carrier should also be able to provide proof of delivery.
