Product Details
Place of Origin: China
Brand Name: UNMAG
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: As negotiation
Packaging Details: cartons,pallets
Delivery Time: 20-25days
Payment Terms: T/T L/C
Supply Ability: 100 tons per month for NdFeB magnet
Application: |
Spinder Motor,Stepping Motor,Synchronous Motor,DC Motor, Brushless Motor Etc |
Max Operating Temperature: |
120°C-150°C |
Grade: |
BN-4, BN-6, BN-8, BN-10, BN-12L |
Product Name: |
Bonded Neodymium Magnet |
Material: |
NdFeB Alloy Powder |
Shape: |
Disc, Block, Cylinder, Ring, Etc. |
Coating: |
Epoxy,Nickel,Parylene... |
MOQ: |
100 Pieces |
Application: |
Spinder Motor,Stepping Motor,Synchronous Motor,DC Motor, Brushless Motor Etc |
Max Operating Temperature: |
120°C-150°C |
Grade: |
BN-4, BN-6, BN-8, BN-10, BN-12L |
Product Name: |
Bonded Neodymium Magnet |
Material: |
NdFeB Alloy Powder |
Shape: |
Disc, Block, Cylinder, Ring, Etc. |
Coating: |
Epoxy,Nickel,Parylene... |
MOQ: |
100 Pieces |
Bonded Neodymium Magnets are made with NdFeB alloy powder, which is widely used in spinder motor, stepping motor, synchronous motor, DC motor and brushless motor. With 12 pole magnet, these bonded neodymium magnets are perfectly suitable for precision applications. They can be customized in different sizes and shapes and have a maximum operating temperature of 120°C-150°C.
| Grade | Unit | BN-2 | BN-4 | BN-6 | BN-8L | BN-8 | BN-8SR | BN-10 | BN-10H | BN-12 | BN-12L | BN-13L |
| Remanence (Br) |
(mT) | 300-400 | 400-500 | 500-600 | 600-650 | 630-680 | 620-680 | 680-730 | 700-750 | 720-770 | 760-810 | 780-830 |
| Max. Energy Product (Hcb) |
(KA/m) | 240-320 | 240-320 | 320-400 | 360-440 | 400-480 | 400-480 | 400-480 | 440-520 | 440-520 | 400-480 | 400-480 |
| (KOe) | (3.0-4.0) | (3.0-4.0) | (4.0-5.0) | (4.5-5.5) | (5.0-6.0) | (5.0-6.0) | (5.0-6.0) | (4.5-6.5) | (5.5-6.5) | (5.0-6.0) | (5.0-6.0) | |
| Max. Energy Product (Hcj) |
(KA/m) | 480-640 | 560-720 | 560-720 | 640-800 | 640-800 | 880-1120 | 640-800 | 640-800 | 720-800 | 480-640 | 480-640 |
| (KOe) | (6.0-8.0) | (7.0-9.0) | (7.0-9.0) | (8.0-10.0) | (8.0-10.0) | (11.0-14.0) | (8.0-10.0) | (8.0-10.0) | (9.0-10.0) | (6.0-8.0) | (6.0-8.0) | |
| Max. Energy Product (BH max) |
(KJ/m3) | 24-32 | 32-44 | 52-60 | 60-68 | 68-76 | 68-76 | 76-84 | 80-88 | 88-96 | 88-96 | 88-104 |
| (MGOe) | (3.0-4.0) | (4.0-5.5) | (6.5-7.5) | (7.5-8.5) | (8.5-9.5) | (8.5-9.5) | (9.5-10.5) | (10.0-11.0) | (11.0-12.0) | (11.0-12.0) | (11.0-13.0) | |
| Recoil Permeability (ur) |
(μ H/M) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Tempetrature Coefficient | (%/℃) | -0.11 | -0.11 | -0.11 | -0.11 | -0.11 | -0.1 | -0.1 | -0.1 | -0.1 | -0.12 | -0.12 |
| Curie Temperature (Tc) |
(℃) | 300 | 300 | 300 | 300 | 350 | 350 | 350 | 350 | 350 | 320 | 320 |
| Max.Operating Temperature | (℃) | 160 | 160 | 160 | 160 | 160 | 180 | 160 | 160 | 160 | 150 | 150 |
| Max. Energy Product | (KA/m) | >1600 | >1600 | >1600 | >1600 | >1600 | >3000 | >1600 | >1600 | >1600 | >1600 | >1600 |
| (KOe) | >20 | >20 | >20 | >20 | >20 | >25 | >20 | >20 | >20 | >20 | >20 | |
| Density (ρ) |
(g/cm3) | 4.5-5.0 | 5.0-5.5 | 5.5-6.0 | 5.8-6.0 | 5.8-6.1 | 5.8-6.1 | 5.8-6.1 | 6.0-6.3 | 6.0-6.3 | 6.0-6.3 | 6.1-6.4 |
| Hardness | HRB | 40-45 | 40-45 | 40-45 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 |

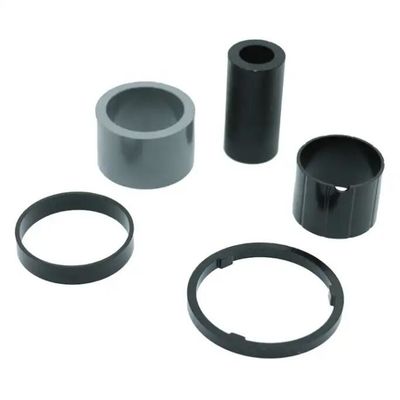

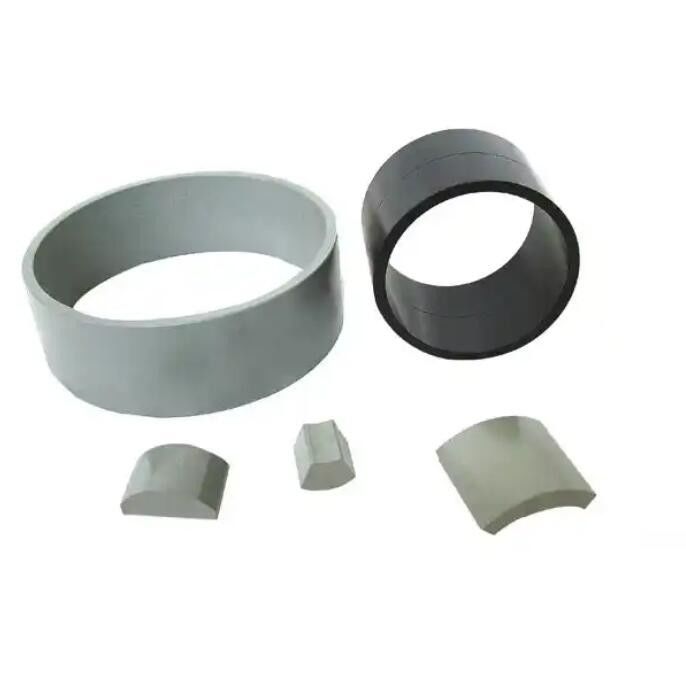

UNMAG Bonded Neodymium Magnet is a top-grade permanent magnet material made of NdFeB alloy powder based on bonded magnet technology. It has high magnetic performance, good corrosion resistance and stable magnetism. Bonded Neodymium Magnet is available in various shapes, such as block, arch, disc, 12 pole, etc. It is widely used in motors, actuators, sensors, separators, medical equipment, magnetic drive, linear motors, etc.
UNMAG Bonded Neodymium Magnet is produced in China and the delivery time is around 25-30 days. The coating is available in epoxy, nickel, parylene, etc. The packaging includes carton box and pallet. The MOQ is 100 pieces.
UNMAG Bonded Neodymium Magnet is a first-class choice for customers who are looking for a reliable and durable magnet. It has excellent magnetic properties, and is suitable for many different applications. It is a great product to use in motors, actuators, sensors, separators, medical equipment, magnetic drive, linear motors, etc.
UNMAG provides custom Bonded Neodymium Magnet services. Our Bonded Neodymium Magnets are made of NdFeB alloy powder and are available in grades BN-4, BN-6, BN-8, BN-10, and BN-12L. They are available in a variety of shapes, including discs, blocks, cylinders, and multi-pole ring magnets. All Bonded Neodymium Magnets are made to order and can be customized to fit any size and shape requirement. Delivery time is 25-30 days and packaging options include carton box and pallet. All Bonded Neodymium Magnets are made with high quality materials and are guaranteed to meet customer specifications.
Bonded Neodymium Magnet Packaging and Shipping:
Packaging: Bonded neodymium magnets are typically packaged in moisture-resistant and corrosion-resistant materials such as poly bags, plastic boxes, or metal cans.
Shipping: The bonded neodymium magnets are usually shipped in cardboard boxes or foam boxes for added protection.
