OEM Neodymium Iron Boron Magnets
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGrade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... | Coating | Nickel,NiCuNi,Zinc,Epoxy Etc |
---|---|---|---|
Magnetic Orientation | As Customization | Material | Neodymium Iron Boron |
Working Temperature | 80~220°C | Shape | Block,Arc,Ring,Customized Shape Magnet |
Application | New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors | ||
Highlight | Neodymium Iron Boron Magnet OEM,OEM Neodymium Boron Magnets,ISO Neodymium Iron Boron Magnets |

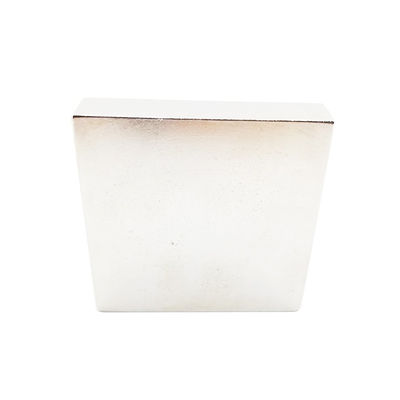

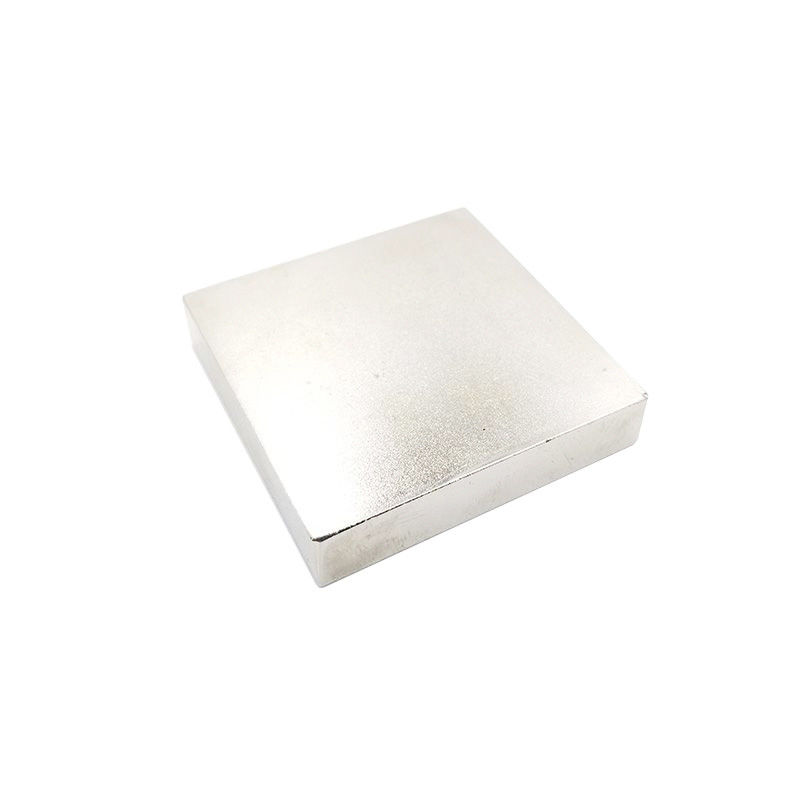

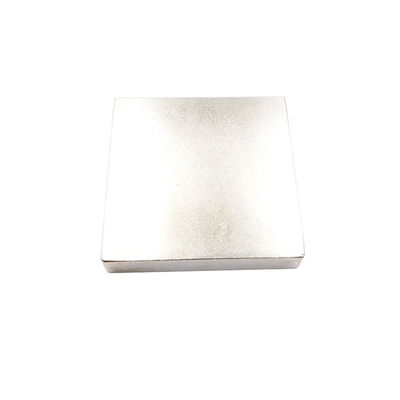

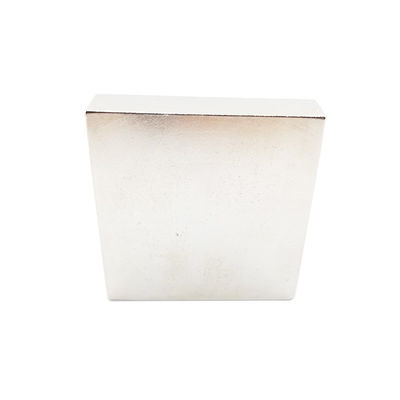

Customized Neodymium Iron Boron Magnet For Industrial Applications
Product Description
Sintered Neodymium Magnet, also known as N50 Neodymium Magnets, is a permanent magnet made from Neodymium Iron Boron material. It is widely used in various applications, such as New Energy Cars, Wind Power Generation, Servo Motors and Traction Motors.
The sintered Neodymium Magnet has a wide working temperature range from 80 to 220°C and various shapes, such as Block, Arc, Ring and Customized Shape Magnet. It is also available with a range of coatings, including Nickel, NiCuNi, Zinc and Epoxy.
The sintered Neodymium Magnet is widely used in a variety of industries, such as automotive, electronics, medical and industrial automation, due to its high magnetic properties, excellent corrosion resistance and cost-effectiveness.
Features
- Permanent Neodymium Magnet: Sintered Neodymium Magnet
- Coating: Nickel,NiCuNi,Zinc,Epoxy Etc
- Grade: N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
- Shape: Block,Arc,Ring,Customized Shape Magnet
- Certification: ISO9001, IATF16949, ISO14001
- Application: New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
- Neodymium-Iron-Boron Magnet: Sintered Neodymium Magnet
- Neodymium Sintered Magnet: Sintered Neodymium Magnet
Technical Parameters
Parameters | Details |
---|---|
Material | Neodymium Iron Boron |
Magnetic Orientation | As Customization |
Certification | ISO9001, IATF16949, ISO14001 |
Application | New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors |
Coating | Nickel,NiCuNi,Zinc,Epoxy Etc |
Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
Shape | Block,Arc,Ring,Customized Shape Magnet |
Working Temperature | 80~220°C |
Physical Properties of Sintered Neodymium Magnet
Parameter Name | Parameter Values | Unit |
Curie Temperature | 310~380 | ℃ |
Relative Recoil Permeability | 1.02~1.05 | |
Reversible Temperature Coefficient of Br (20~100℃) | -0.09~-0.13 | %/℃ |
Reversible Temperature Coefficient of Hcj (20~100℃) | -0.4~-0.7 | %/℃ |
Density | 7.50~7.70 | g/cm3 |
Vickers Hardness | 550~700 | |
Bending Strength | -0.09~-0.13 | MPa |
Tensile Strength | ≥80 | MPa |
Compressive Strength | 800 ~1050 | MPa |
Electric Resistivity | 150 | μΩ·cm |
Thermal Conductivity | 8~10 | W/(M·℃) |
Coefficient of Thermal Expansion (Parallel to the orientation) |
5 | 10-6/K |
Coefficient of Thermal Expansion (vertical to the orientation) |
-1.5 | 10-6/K |
Young's Modulus | 150~200 | GPa |
Specific Heat(20℃~320℃) | 3.0~4.6 | J/(g·k) |
weight loss(low weight loss products) | ≤2 | mg/cm2 |
Applications
Sintered Neodymium Magnet, also known as Permanent Neodymium Magnet or Neodymium-Iron-Boron Magnet, is a powerful and durable type of NdFeB Magnet. With its exceptional magnetic strength, UNMAG Sintered Neodymium Magnet is widely used in many industrial applications such as automotive, wind turbines, medical equipment, motors, power tools, audio speakers, and more. It can endure a working temperature range from 80 to 220°C, and is available in various grades such as N35-N52, 35M-50M, 35H-48H, 30SH-45SH, etc. It is made from Neodymium Iron Boron material and can be coated with Nickel, NiCuNi, Zinc, Epoxy, etc. UNMAG Sintered Neodymium Magnet is certified with ISO9001, IATF16949, ISO14001, and comes in Carton Box packaging. Delivery time is 20-25days.
Customization
Brand Name: UNMAG
Place of Origin: China
Packaging Details: Carton Box
Delivery Time: 20-25days
Coating: Nickel,NiCuNi,Zinc,Epoxy Etc
Grade: N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Product Description
Sintered Neodymium Magnet, also known as N50 Neodymium Magnets, is a permanent magnet made from Neodymium Iron Boron material. It is widely used in various applications, such as New Energy Cars, Wind Power Generation, Servo Motors and Traction Motors.
The sintered Neodymium Magnet has a wide working temperature range from 80 to 220°C and various shapes, such as Block, Arc, Ring and Customized Shape Magnet. It is also available with a range of coatings, including Nickel, NiCuNi, Zinc and Epoxy.
The sintered Neodymium Magnet is widely used in a variety of industries, such as automotive, electronics, medical and industrial automation, due to its high magnetic properties, excellent corrosion resistance and cost-effectiveness.
Packing and Shipping
Packaging and Shipping for Sintered Neodymium Magnet
- Packaging materials: Corrugated boxes, poly bags, and foam.
- Packaging design: Magnets are placed in the center of the box, separated by foam to avoid contact with each other, and surrounded by corrugated cardboard.
- Shipping method: We provide international shipping services via air, sea, truck, and railway.
Certification: ISO9001, IATF16949, ISO14001
Shape: Block,Arc,Ring,Customized Shape Magnet
Material: Neodymium Iron Boron
UNMAG offers customized neodymium sintered magnet for various application. Our neodymium magnets are of high quality and are offered in a variety of shapes and grades. Whether you need a standard size or a custom size, we have the best solution for you.
Our neodymium magnets are made with permanent neodymium material and are perfect for a wide range of applications including motors, sensors, generators, and more. We are committed to providing you with the highest quality magnets, and we guarantee that our neodymium sintered magnet will meet your needs.
