Product Details
Place of Origin: China
Brand Name: UNMAG
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: As negotiation
Packaging Details: cartons,pallets
Delivery Time: 20-25days
Payment Terms: T/T L/C
Supply Ability: 100 tons per month for NdFeB magnet
Tolerance: |
±0.1mm |
Magnetic Direction: |
Thickness,Axial.. |
Working Temperature: |
-20℃ To 80℃ |
MOQ: |
100 Pieces |
Material: |
Neodymium |
Shape: |
Disc |
Size: |
Customized |
Pull Force: |
High |
Tolerance: |
±0.1mm |
Magnetic Direction: |
Thickness,Axial.. |
Working Temperature: |
-20℃ To 80℃ |
MOQ: |
100 Pieces |
Material: |
Neodymium |
Shape: |
Disc |
Size: |
Customized |
Pull Force: |
High |

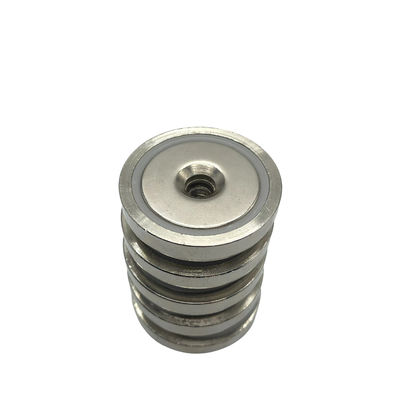

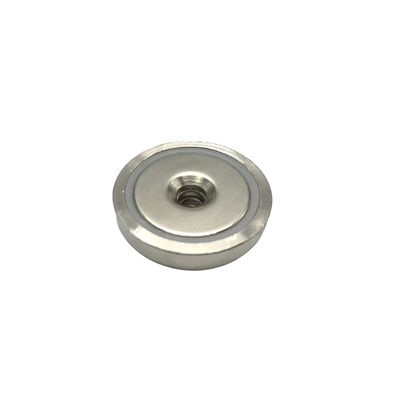

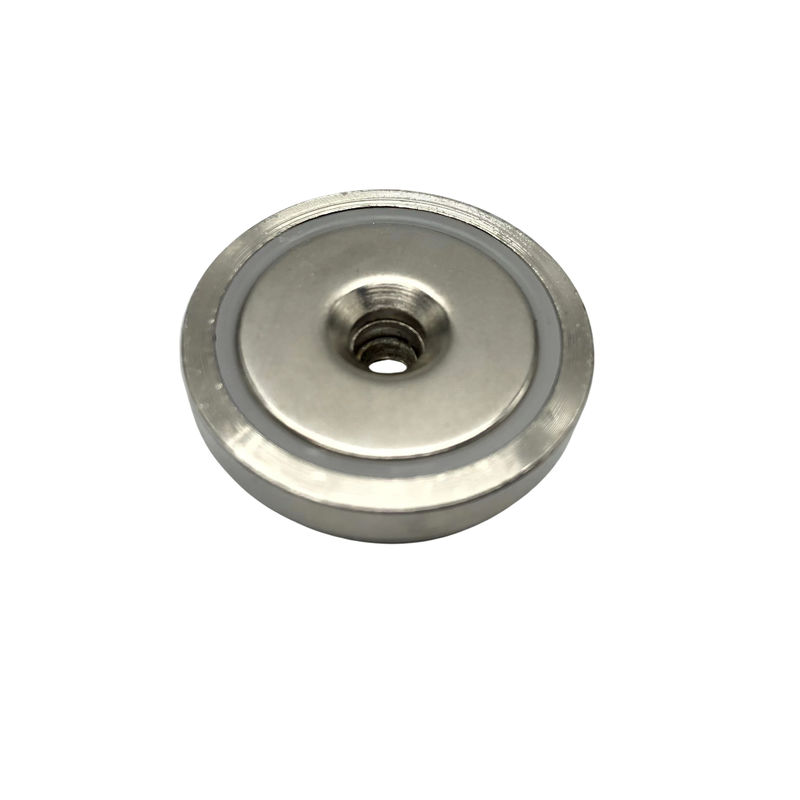

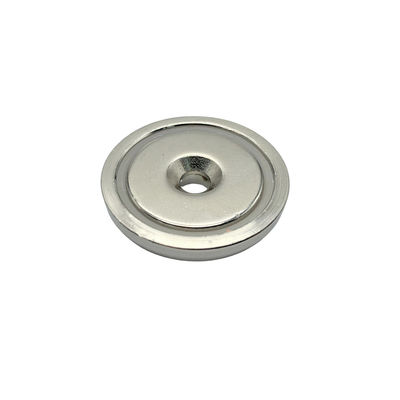

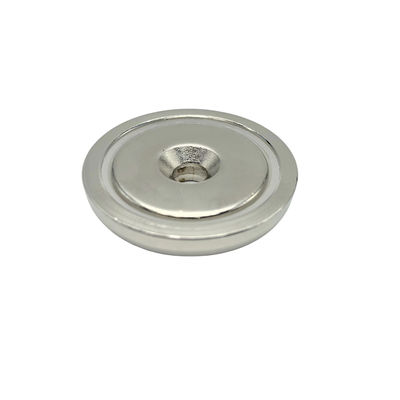

Our Pot Neodymium Magnet is a powerful NdFeB mounting magnet made from neodymium iron boron. Its pull force is strong enough to keep items secure even in harsh environments. The working temperature of this product ranges from -20℃ to 80℃, and it comes with a disc shape. Each piece of the magnet is carefully packed in a carton box to ensure safe delivery. We provide a minimum order quantity of 100 pieces, so you can get the right amount for your projects.
| Model |
D (Mm) |
D1 (Mm) |
D2 (Mm) |
H (Mm) |
Hole Degree |
Strength (Kg) |
| UN-A16 | 16 | 3.5 | 6.5 | 5 | 90° | 5 |
| UN-A20 | 20 | 4.5 | 8.6 | 7 | 90° | 6 |
| UN-A25 | 25 | 5.5 | 10.5 | 8 | 90° | 14 |
| UN-A32 | 32 | 5.5 | 10.5 | 8 | 90° | 25 |
| UN-A36 | 36 | 6.5 | 12 | 9 | 90° | 29 |
| UN-A42 | 42 | 6.5 | 12 | 9 | 90° | 37 |
| UN-A48 | 48 | 8.5 | 16 | 11.5 | 90° | 68 |
| UN-A60 | 60 | 8.5 | 16 | 15 | 90° | 112 |
| UN-A75 | 75 | 10.5 | 20 | 18 | 90° | 162 |
| UN-A90 | 90 | 10.5 | 20 | 18 | 90° | 300 |
| UN-A120 | 120 | 12.5 | 20.5 | 18 | 90° | 600 |
UNMAG Neodymium Pot Magnets are the perfect solution for mounting, holding and lifting applications. Manufactured with high quality Neodymium magnet material, these pot magnets provide superior hold strength and are ideal for a variety of applications. With a wide range of sizes, shapes and pull force, these NdFeB mounting magnets offer powerful magnetic solutions for a wide range of applications.
UNMAG Neodymium Pot Magnets are designed with a unique pot shape that allows a strong magnetic force to be concentrated on one side. The holding force can be further increased by adding a steel plate to the magnetic surface. These magnets are also available in a wide range of sizes and shapes, including discs, cylinders, and blocks. With a pull force up to 100lbs, these magnets are strong enough to be used for heavy-duty purposes.
UNMAG Neodymium Pot Magnets offer excellent magnetic direction with strong magnetic field along the thickness and axial direction. With a superior magnetic performance, these pot magnets are well suited for many applications such as lifting, holding, and mounting materials, making them ideal for use in industrial, commercial, and residential settings. The magnets can also be customized to fit your specific requirements and can be produced in a variety of shapes, sizes, and pull forces.
We provide technical support and services for Pot Neodymium Magnet. If you have any questions or inquiries related to the product, our team of qualified professionals will be able to assist you. They can provide you with technical advice and answer any questions you may have about the product.
We also offer a warranty on all Pot Neodymium Magnet products. If you experience any issues with the product, our warranty covers any defects in material or workmanship. Our team of experts will be able to assist you in resolving the issue quickly.
We strive to ensure our customers are satisfied with our products and services. If you have any further questions or concerns, please do not hesitate to contact us.
