Product Details
Place of Origin: China
Brand Name: UNMAG
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: As negotiation
Packaging Details: cartons,pallets
Delivery Time: 20-25days
Payment Terms: T/T L/C
Supply Ability: 100 tons per month for NdFeB magnet
Coating: |
Nickel |
Tolerance: |
±0.1mm |
Max Operating Temp: |
80°C |
Material: |
Neodymium |
Pull Force: |
High |
Shape: |
Hook |
Product Name: |
Neodymium Hook Magnet |
Magnetization Direction: |
Axial |
Coating: |
Nickel |
Tolerance: |
±0.1mm |
Max Operating Temp: |
80°C |
Material: |
Neodymium |
Pull Force: |
High |
Shape: |
Hook |
Product Name: |
Neodymium Hook Magnet |
Magnetization Direction: |
Axial |

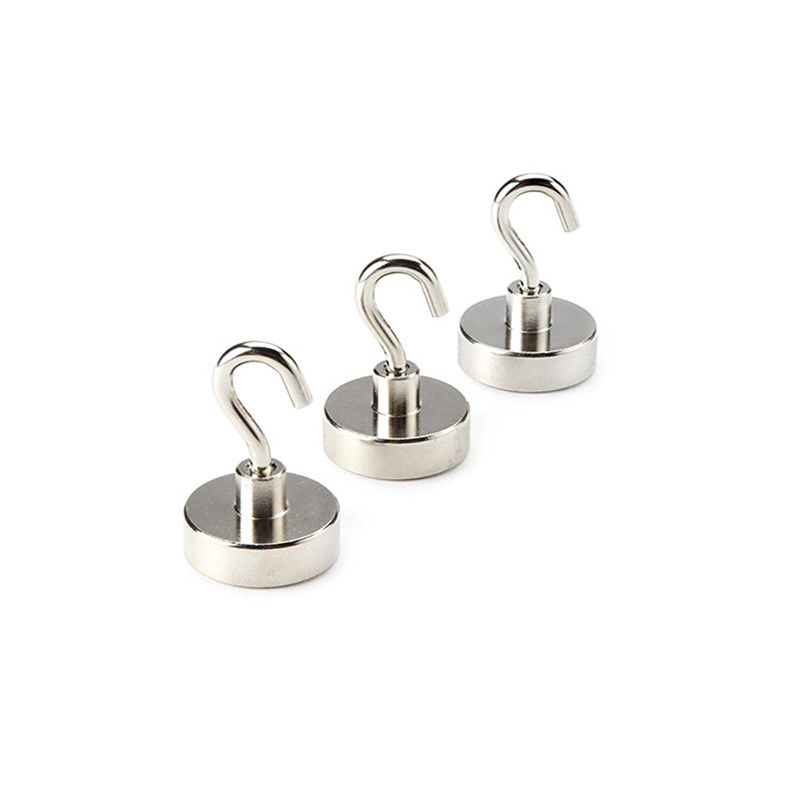

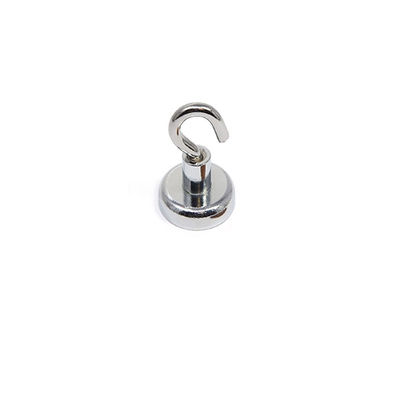

Our Neodymium Hook Magnet is a locking-hook-magnet made of neodymium material with a nickel coating, offering a high pull force. It has a maximum operating temperature of 80°C, making it an ideal choice for a variety of applications. The Nd-hook-magnet’s design is simple and easy to use, making it a perfect choice for industrial and commercial uses. It is also resistant to corrosion, making it a reliable and durable choice. Our Neodymium Hook Magnet makes a great addition to any toolkit and is sure to provide you with years of use.
Model E--NdFeB Pot Magnet With Hook
| Model |
D (mm) |
D1 (mm) |
M (mm) |
H (mm) |
h (mm) |
Strength (kg) |
| UN-E10 | 10 | 6 | 3 | 12 | 4 | 3 |
| UN-E12 | 12 | 6 | 4 | 12 | 5 | 4 |
| UN-E16 | 16 | 6 | 4 | 13 | 5 | 5.5 |
| UN-E20 | 20 | 8 | 4 | 15 | 7 | 9 |
| UN-E25 | 25 | 10 | 5 | 17 | 8 | 22 |
| UN-E32 | 32 | 10 | 6 | 18 | 8 | 34 |
| UN-E36 | 36 | 10 | 6 | 18 | 8 | 41 |
| UN-E42 | 42 | 12 | 8 | 20 | 9 | 68 |
| UN-E48 | 48 | 12 | 8 | 24 | 11.5 | 81 |
| UN-E60 | 60 | 14 | 8 | 30 | 15 | 113 |
| UN-E75 | 75 | 16 | 10 | 34 | 18 | 164 |
UNMAG Neodymium Hook Magnet is a powerful and attractive force magnet, designed to make your life much easier. This magnetic hook is made of high-grade Neodymium material with a nickel coating, and has a maximum operating temperature of 80°C. It generates a strong attractive force, and can be used for many applications. The tolerance of the Neodymium Hook Magnet is ±0.1mm, and it is an excellent choice for heavy-duty, industrial applications. With its great magnetic power, UNMAG Neodymium Hook Magnet can be used to hang or hold heavy items, and it can be used in many places, such as workshops, warehouses, and garages.
Our UNMAG Neodymium Hook Magnet offers a high pull force and secure-holding-magnet. It has a nickel coating and is in the shape of a hook. The max operating temperature is 80°C. It's a strong-hold-magnet that you can rely on for secure-holding-magnet.
