Brand Name: | UNMAG |
MOQ: | 100pcs |
Price: | As negotiation |
Delivery Time: | 20-25days |
Payment Terms: | T/T L/C |

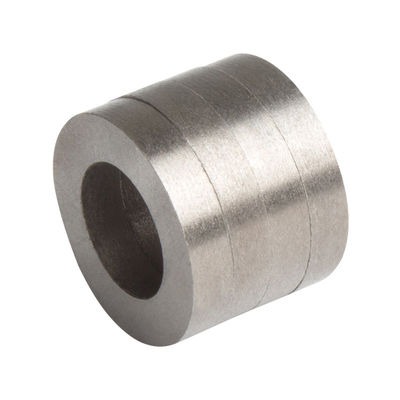

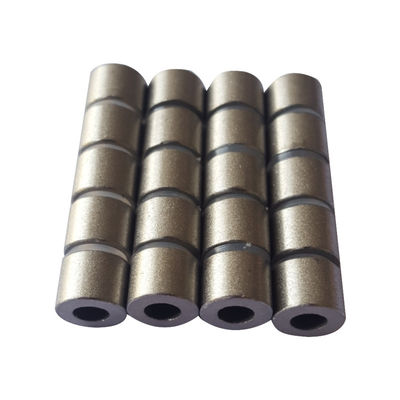

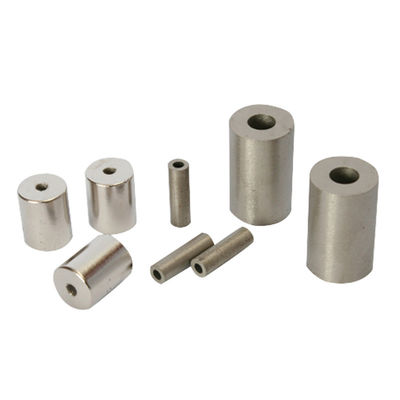

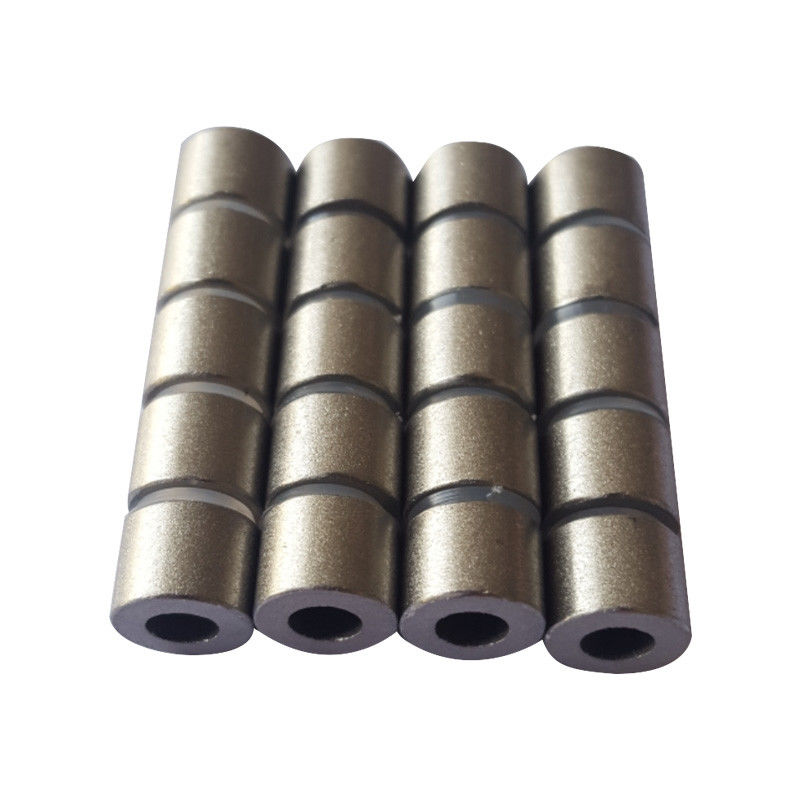

Samarium Cobalt Magnet is a type of ring magnets made of Samarium Cobalt. It is widely used in various fields due to its excellent magnetic properties. It has grade of YX-24H, YX-30H, YXG-28, YXG-30, YXG-32, and its magnetization can be customized according to customers' requirements. It has high heat resistance and operating temperature up to 250-500°C. The unique properties of Samarium Cobalt make it an ideal choice for a variety of applications such as motor, generator, electronics, medical, and aerospace industry. With its excellent temperature stability and corrosion resistance, Samarium Cobalt Magnet has become the preferred choice for making high-performance and high-precision magnets.
Grade | Remanence (Br) |
Coercivity (Hcb) |
Intrinsic Coercivity (Hcj) |
![]()
|
Curie Temperature (TC) |
Max Work Temp (TW) |
Temperature Coefficient of Br (Br) |
Temperature Coefficient of Hcj (Hcj) |
|||||||
T | kGS | kA/m | KOe | KA/m | KOe | KJ/m3 | MGOe | ℃ | ℃ | %℃ | %℃ | ||||
YX-16s | 0.79-0.84 | 7.9-8.4 | 620-660 | 7.8-8.3 | ≥1830 | ≥23 | 118-135 | 15-17 | 750 | 250 | -0.035 | -0.28 | |||
YX-18s | 0.84-0.89 | 8.4-8.9 | 660-700 | 8.3-8.8 | ≥1830 | ≥23 | 135-151 | 17-19 | 750 | 250 | -0.040 | -0.28 | |||
YX-20s | 0.89-0.93 | 8.9-9.3 | 684-732 | 8.6-9.2 | ≥1830 | ≥23 | 150-167 | 19-21 | 750 | 250 | -0.045 | -0.28 | |||
YX-22s | 0.92-0.96 | 9.2-9.6 | 710-756 | 8.9-9.5 | ≥1830 | ≥23 | 167-183 | 21-23 | 750 | 250 | -0.045 | -0.28 | |||
YX-24s | 0.96-1.00 | 9.6-10.0 | 740-788 | 9.3-9.9 | ≥1830 | ≥23 | 183-199 | 23-25 | 750 | 250 | -0.045 | -0.28 | |||
LTc(YX-10) | 0.62-0.66 | 6.2-6.6 | 485-517 | 6.1-6.5 | ≥1830 | ≥23 | 75-88 | 9.5-11 | 750 | 300 | Temp Range | Br Temp Coefficient%℃ | |||
20-100℃ | +0.0156%℃ | ||||||||||||||
100-200℃ | +0.0087%℃ | ||||||||||||||
200-300℃ | +0.0007%℃ | ||||||||||||||
YX-12 | 0.70-0.74 | 7.0-7.4 | 358-390 | 4.5-4.9 | 358-478 | 4.5-6 | 80-103 | 10-13 | 450 | 200 | |||||
YXG-24H | 0.95-1.02 | 9.5-10.2 | 692-764 | 8.7-9.6 | ≥1990 | ≥25 | 175-191 | 22-24 | 800 | 350 | -0.025 | -0.20 | |||
YXG-26H | 1.02-1.05 | 10.2-10.5 | 748-796 | 9.4-10.0 | ≥1990 | ≥25 | 191-207 | 24-26 | 800 | 350 | -0.030 | -0.20 | |||
YXG-28H | 1.03-1.08 | 10.3-10.8 | 756-812 | 9.5-10.2 | ≥1990 | ≥25 | 207-220 | 26-28 | 800 | 350 | -0.035 | -0.20 | |||
YXG-30H | 1.08-1.10 | 10.8-11.0 | 788-835 | 9.9-10.5 | ≥1990 | ≥25 | 220-240 | 28-30 | 800 | 350 | -0.035 | -0.20 | |||
YXG-32H | 1.10-1.13 | 11.0-11.3 | 812-860 | 10.2-10.8 | ≥1990 | ≥25 | 230-255 | 29-32 | 800 | 350 | -0.035 | -0.20 | |||
YXG-22 | 0.93-0.97 | 9.3-9.7 | 676-740 | 8.5-9.3 | ≥1433 | ≥18 | 160-183 | 20-23 | 800 | 300 | -0.020 | -0.20 | |||
YXG-24 | 0.95-1.02 | 9.5-10.2 | 692-764 | 8.7-9.6 | ≥1433 | ≥18 | 175-191 | 22-24 | 800 | 300 | -0.025 | -0.20 | |||
YXG-26 | 1.02-1.05 | 10.2-10.5 | 748-796 | 9.4-10.0 | ≥1433 | ≥18 | 191-207 | 24-26 | 800 | 300 | -0.030 | -0.20 | |||
YXG-28 | 1.03-1.08 | 10.3-10.8 | 756-812 | 9.5-10.2 | ≥1433 | ≥18 | 207-220 | 26-28 | 800 | 300 | -0.035 | -0.20 | |||
YXG-30 | 1.08-1.10 | 10.8-11.0 | 788-835 | 9.9-10.5 | ≥1433 | ≥18 | 220-240 | 28-30 | 800 | 300 | -0.035 | -0.20 | |||
YXG-32 | 1.10-1.13 | 11.0-11.3 | 812-860 | 10.2-10.8 | ≥1433 | ≥18 | 230-255 | 29-32 | 800 | 300 | -0.035 | -0.20 | |||
YXG-26M | 1.02-1.05 | 10.2-10.5 | 676-780 | 8.5-9.8 | 955-1433 | 12-18 | 191-207 | 24-26 | 800 | 300 | -0.035 | -0.20 | |||
YXG-28M | 1.03-1.08 | 10.3-10.8 | 676-796 | 8.5-10.0 | 955-1433 | 12-18 | 207-220 | 26-28 | 800 | 300 | -0.035 | -0.20 | |||
YXG-30M | 1.08-1.10 | 10.8-11.0 | 676-835 | 8.5-10.5 | 955-1433 | 12-18 | 220-240 | 28-30 | 800 | 300 | -0.035 | -0.20 | |||
YXG-32M | 1.10-1.13 | 11.0-11.3 | 676-852 | 8.5-10.7 | 955-1433 | 12-18 | 230-255 | 29-32 | 800 | 300 | -0.035 | -0.20 | |||
YXG-24L | 0.95-1.02 | 9.5-10.2 | 541-716 | 6.8-9.0 | 636-955 | 8-12 | 175-191 | 22-24 | 800 | 250 | -0.025 | -0.20 | |||
YXG-26L | 1.02-1.05 | 10.2-10.5 | 541-748 | 6.8-9.4 | 636-955 | 8-12 | 191-207 | 24-26 | 800 | 250 | -0.035 | -0.20 | |||
YXG-28L | 1.03-1.08 | 10.3-10.8 | 541-764 | 6.8-9.6 | 636-955 | 8-12 | 207-220 | 26-28 | 800 | 250 | -0.035 | -0.20 | |||
YXG-30L | 1.08-1.15 | 10.8-11.5 | 541-796 | 6.8-10.0 | 636-955 | 8-12 | 220-240 | 28-30 | 800 | 250 | -0.035 | -0.20 | |||
YXG-32L | 1.10-1.15 | 11.0-11.5 | 541-812 | 6.8-10.2 | 636-955 | 8-12 | 230-255 | 29-32 | 800 | 250 | -0.035 | -0.20 | |||
LTC(YXG-22) | 0.94-0.98 | 9.4-9.8 | 668-716 | 8.4-9.0 | ≥1433 | ≥18 | 167-183 | 21-23 | 840 | 300 | Temp Range | Br Temp Coefficient%℃ | |||
–50-25℃ | ﹢0.005%℃ | ||||||||||||||
20-100℃ | -0.008%℃ | ||||||||||||||
100-200℃ | -0.008%℃ | ||||||||||||||
200-300℃ | -0.011%℃ |
Parameter Name | Unit | SmCo5 | Sm2Co17 |
Density | g/cm³ | 8.2 ~ 8.4 | 8.3 ~ 8.5 |
Curie Temperature | ℃ | 700 ~ 750 | 800 ~ 850 |
Max. Operating Temperature 250 350 | ℃ | 250 | 350 |
Temperature Coefficient Of Br -0.05 -0.03 | %/℃ | -0.05 | -0.03 |
Vickers Hardness 450 ~ 500 550 ~600 | HV | 450 ~ 500 | 550 ~600 |
Electronic Ressistivity | Ω.cm | 5 ~ 6 x 10(-5) | 8 ~ 9 x 10(-5) |
Thermal Conductivity | W/mK | 12 | 13 |
Property | Value |
---|---|
Application | Spaceflight, National Defense, Microwave, Sensors |
Corrosion Resistance | High |
Material | Samarium Cobalt (SmCo Magnet) |
Coating | As Customized |
Grade | YX-24H, YX-30H, YXG-28, YXG-30, YXG-32 |
Heat Resistance | High |
Pull Force | As Customer Requirement |
Operating Temperature | 250-500°C |
Magnetization | As Customized |
The UNMAG Samarium Cobalt Magnet is a powerful ring magnet made of samarium cobalt material. This magnet is ideal for a variety of applications, from spaceflight to national defense, microwaves, sensors, and more. Its high heat resistance makes it a reliable and durable choice. Our Samarium Cobalt Magnet is available in several grades, including YX-24H, YX-30H, YXG-28, YXG-30, and YXG-32, and can be magnetized as needed to suit your specific requirements.
The UNMAG Samarium Cobalt Magnet is ideal for a range of applications, including motors, radar systems, magnetic transmission systems, and more. Its high heat resistance makes it an excellent choice for high-temperature applications. Its superior magnetic properties make it an ideal choice for generators, sensors, and other applications that rely on strong magnetic fields.
The UNMAG Samarium Cobalt Magnet is a reliable, durable, and powerful magnet for a variety of applications. Its high heat resistance and superior magnetic properties make it an ideal choice for spaceflight, national defense, microwave, and sensor applications. Its various grades provide a range of options to choose from, so you can find the perfect magnet for your needs. With its reliable performance and powerful magnetic field, the UNMAG Samarium Cobalt Magnet is the perfect choice for your project.
UNMAG Samarium Cobalt Magnets provide superior corrosion and heat resistance, operating temperature range between 250-500°C, and applications such as spaceflight, national defense, microwave, and sensors. Our Samarium Cobalt Ring Magnets Smco Magnet are customizable, allowing for magnetization as needed.
We provide technical support and service for Samarium Cobalt Magnet, which includes:
If you have any questions about Samarium Cobalt Magnet products or need assistance with their installation and use, please don't hesitate to contact us.
Packaging and Shipping
Samarium Cobalt Magnets are packaged in moisture-proof bags to ensure they remain secure and undisrupted during shipping and handling. The bags are then placed in boxes and then shipped to their destination. The boxes are labeled with details on the contents and the shipping address.
