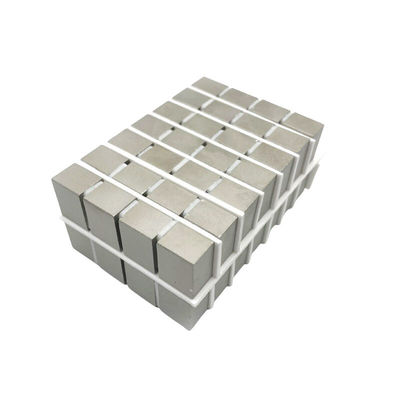

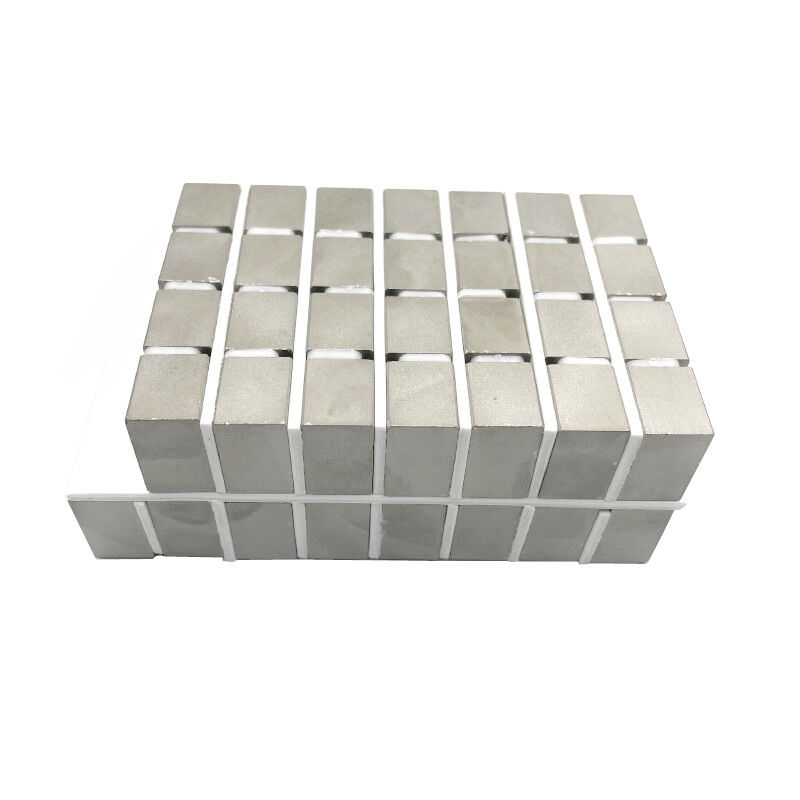

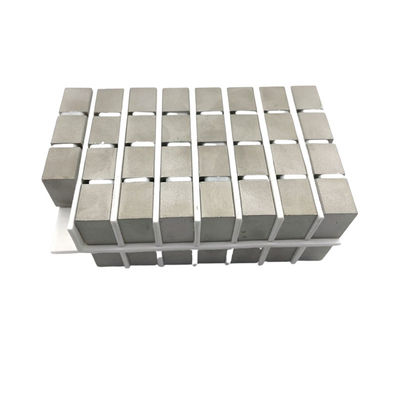

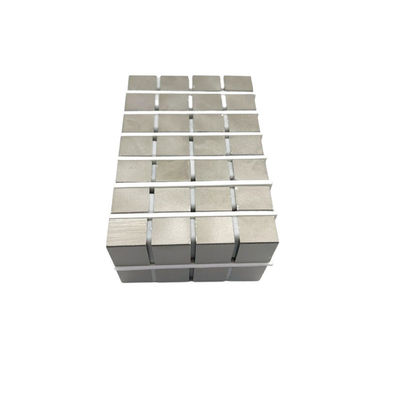

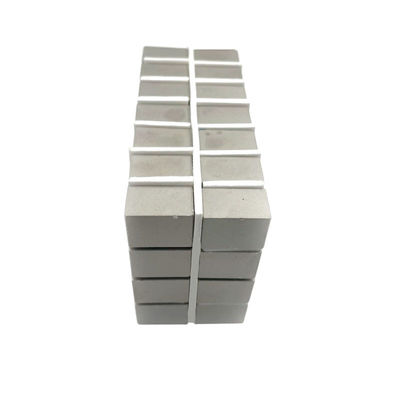

Industrial Rectangular Samarium Cobalt Magnet YXG-32 Rare Earth Magnets

Product Details

Place of Origin: China

Brand Name: UNMAG

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: As negotiation

Packaging Details: cartons,pallets

Delivery Time: 20-25days

Payment Terms: T/T L/C

Supply Ability: 20 tons per month for SmCo magnet

Get Best Price
Contact Now
Specifications
Highlight:

Samarium Cobalt Rectangular Rare Earth Magnets

,

Industrial Rectangular Rare Earth Magnets

Application:
Spaceflight,National Defense,Microwave,Sensors
Coating:
Uncoated
Material:
Samarium Cobalt
Grade:
YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32
Magnetization:
Through Axial,Thickness Or Customized
Operating Temperature:
250-500°C
Application:
Spaceflight,National Defense,Microwave,Sensors
Coating:
Uncoated
Material:
Samarium Cobalt
Grade:
YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32
Magnetization:
Through Axial,Thickness Or Customized
Operating Temperature:
250-500°C
Description
Industrial Rectangular Samarium Cobalt Magnet YXG-32 Rare Earth Magnets

Samarium Cobalt YXG-32 Material High-Performance For Industrial Applications

Product Description:

Samarium Cobalt Magnet is one of the most powerful permanent magnets in the world. It is made of SmCo (Samarium Cobalt) material, and its operating temperature is from 250-500°C. The Samarium Cobalt Magnet has a wide range of grades from YXG-26H to YXG-32, and the coating can be customized from uncoated to through axial, thickness and other types. It is characterized by its high performance, high temperature stability, corrosion resistance and strong magnetic field, making it an ideal choice for many applications.



Features:

  • Product Name: Samarium Cobalt Magnet
  • Material: SmCo (Samarium Cobalt)
  • Application: Spaceflight, National Defense, Microwave, Sensors
  • Coating: Uncoated
  • Grade: YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32
  • Operating Temperature: 250-500°C

Magnetic Properites Of SmCo Magnet:

Grade Remanence
(Br)
Coercivity
(Hcb)
Intrinsic Coercivity
(Hcj)

Industrial Rectangular Samarium Cobalt Magnet YXG-32 Rare Earth Magnets 0Max Energy Product

(BH)max



Curie Temperature
(TC)
Max Work Temp
(TW)
Temperature Coefficient of Br
(Br)
Temperature Coefficient of Hcj
(Hcj)
T kGS kA/m KOe KA/m KOe KJ/m3 MGOe %℃ %℃
YX-16s 0.79-0.84 7.9-8.4 620-660 7.8-8.3 ≥1830 ≥23 118-135 15-17 750 250 -0.035 -0.28
YX-18s 0.84-0.89 8.4-8.9 660-700 8.3-8.8 ≥1830 ≥23 135-151 17-19 750 250 -0.040 -0.28
YX-20s 0.89-0.93 8.9-9.3 684-732 8.6-9.2 ≥1830 ≥23 150-167 19-21 750 250 -0.045 -0.28
YX-22s 0.92-0.96 9.2-9.6 710-756 8.9-9.5 ≥1830 ≥23 167-183 21-23 750 250 -0.045 -0.28
YX-24s 0.96-1.00 9.6-10.0 740-788 9.3-9.9 ≥1830 ≥23 183-199 23-25 750 250 -0.045 -0.28
LTc(YX-10) 0.62-0.66 6.2-6.6 485-517 6.1-6.5 ≥1830 ≥23 75-88 9.5-11 750 300 Temp Range Br Temp Coefficient%℃
                    20-100℃ +0.0156%℃
                    100-200℃ +0.0087%℃
                    200-300℃ +0.0007%℃
YX-12 0.70-0.74 7.0-7.4 358-390 4.5-4.9 358-478 4.5-6 80-103 10-13 450 200
YXG-24H 0.95-1.02 9.5-10.2 692-764 8.7-9.6 ≥1990 ≥25 175-191 22-24 800 350 -0.025 -0.20
YXG-26H 1.02-1.05 10.2-10.5 748-796 9.4-10.0 ≥1990 ≥25 191-207 24-26 800 350 -0.030 -0.20
YXG-28H 1.03-1.08 10.3-10.8 756-812 9.5-10.2 ≥1990 ≥25 207-220 26-28 800 350 -0.035 -0.20
YXG-30H 1.08-1.10 10.8-11.0 788-835 9.9-10.5 ≥1990 ≥25 220-240 28-30 800 350 -0.035 -0.20
YXG-32H 1.10-1.13 11.0-11.3 812-860 10.2-10.8 ≥1990 ≥25 230-255 29-32 800 350 -0.035 -0.20
YXG-22 0.93-0.97 9.3-9.7 676-740 8.5-9.3 ≥1433 ≥18 160-183 20-23 800 300 -0.020 -0.20
YXG-24 0.95-1.02 9.5-10.2 692-764 8.7-9.6 ≥1433 ≥18 175-191 22-24 800 300 -0.025 -0.20
YXG-26 1.02-1.05 10.2-10.5 748-796 9.4-10.0 ≥1433 ≥18 191-207 24-26 800 300 -0.030 -0.20
YXG-28 1.03-1.08 10.3-10.8 756-812 9.5-10.2 ≥1433 ≥18 207-220 26-28 800 300 -0.035 -0.20
YXG-30 1.08-1.10 10.8-11.0 788-835 9.9-10.5 ≥1433 ≥18 220-240 28-30 800 300 -0.035 -0.20
YXG-32 1.10-1.13 11.0-11.3 812-860 10.2-10.8 ≥1433 ≥18 230-255 29-32 800 300 -0.035 -0.20
YXG-26M 1.02-1.05 10.2-10.5 676-780 8.5-9.8 955-1433 12-18 191-207 24-26 800 300 -0.035 -0.20
YXG-28M 1.03-1.08 10.3-10.8 676-796 8.5-10.0 955-1433 12-18 207-220 26-28 800 300 -0.035 -0.20
YXG-30M 1.08-1.10 10.8-11.0 676-835 8.5-10.5 955-1433 12-18 220-240 28-30 800 300 -0.035 -0.20
YXG-32M 1.10-1.13 11.0-11.3 676-852 8.5-10.7 955-1433 12-18 230-255 29-32 800 300 -0.035 -0.20
YXG-24L 0.95-1.02 9.5-10.2 541-716 6.8-9.0 636-955 8-12 175-191 22-24 800 250 -0.025 -0.20
YXG-26L 1.02-1.05 10.2-10.5 541-748 6.8-9.4 636-955 8-12 191-207 24-26 800 250 -0.035 -0.20
YXG-28L 1.03-1.08 10.3-10.8 541-764 6.8-9.6 636-955 8-12 207-220 26-28 800 250 -0.035 -0.20
YXG-30L 1.08-1.15 10.8-11.5 541-796 6.8-10.0 636-955 8-12 220-240 28-30 800 250 -0.035 -0.20
YXG-32L 1.10-1.15 11.0-11.5 541-812 6.8-10.2 636-955 8-12 230-255 29-32 800 250 -0.035 -0.20
LTC(YXG-22) 0.94-0.98 9.4-9.8 668-716 8.4-9.0 ≥1433 ≥18 167-183 21-23 840 300 Temp Range Br Temp Coefficient%℃
                    –50-25℃ ﹢0.005%℃
                    20-100℃ -0.008%℃
                    100-200℃ -0.008%℃
                    200-300℃ -0.011%℃

Applications:

UNMAG is a leading manufacturer of high performance Samarium Cobalt Magnets. Our products are made of Samarium Cobalt material and are available in various grades including YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32. Our Ring Magnets Smco Magnets are capable of operating in temperatures ranging from 250-500°C and can be magnetized through axial, thickness, or customized magnetization. We have been producing high quality Samarium Cobalt Magnets in our Chinese factory for over 25 years, and our products have been widely used in spaceflight, national defense, microwave, and sensors applications.

UNMAG’s Samarium Cobalt Magnets are not only reliable but also highly efficient. We are committed to providing our customers with superior quality products that are delivered on time, and we guarantee a delivery time of 25-30 days.

By choosing UNMAG as your Samarium Cobalt Magnet supplier, you can be sure of getting the best quality products at the most competitive prices. We are proud to have been manufacturing Samarium Cobalt Magnets for a wide range of applications, and we look forward to being your reliable supplier.



Customization:

UNMAG Ring Magnets Smco Magnet, Smco, Samarium Cobalt offer custom-made service, that can be tailored to meet your specific needs.

Brand Name: UNMAG
Place of Origin: China
Delivery Time: 25-30days
Operating Temperature: 250-500°C
Material: Samarium Cobalt
Magnetization: Through Axial,Thickness Or Customized
Coating: Uncoated
Grade: YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32



Packing and Shipping:

Packaging and Shipping of Samarium Cobalt Magnet:

Samarium Cobalt Magnet is packaged and shipped using the highest standards of safety and security. Each shipment is carefully packed in sturdy, corrugated cardboard boxes with additional padding and wrapping materials to ensure that the product is safe and secure during transit. We use a variety of shipping methods, depending on the size and weight of the shipment, to ensure delivery in a timely manner.

We also provide tracking information to our customers to ensure that they can monitor the progress of their shipment and make any necessary changes to the delivery route if needed.
