| Brand Name: | UNMAG |
| MOQ: | 100pcs |
| Price: | As negotiation |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T L/C |

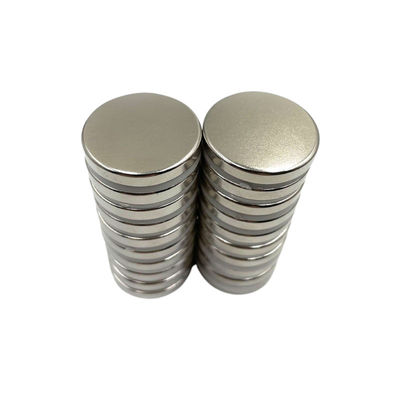

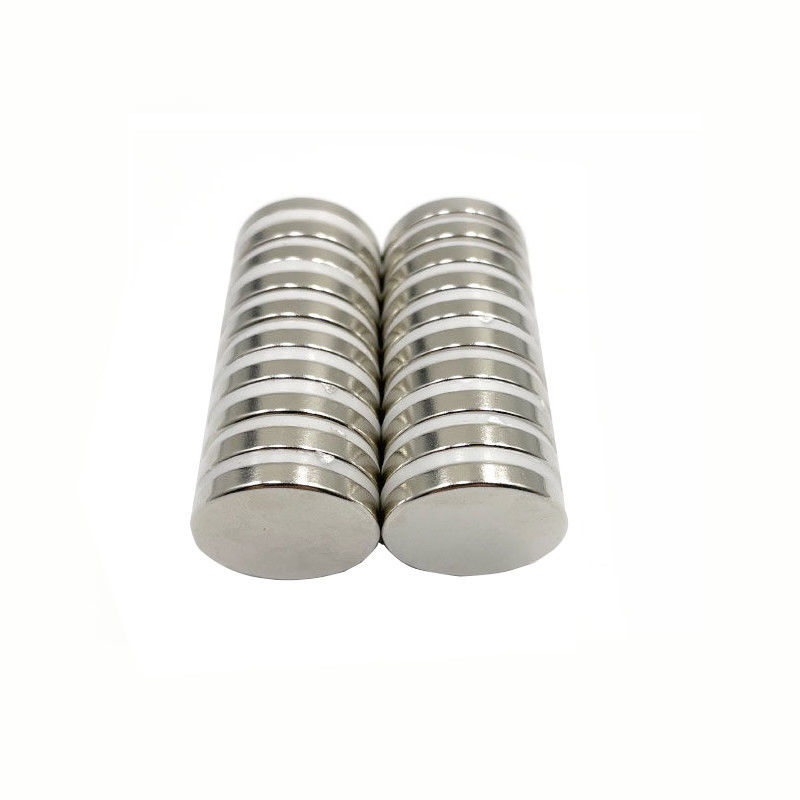

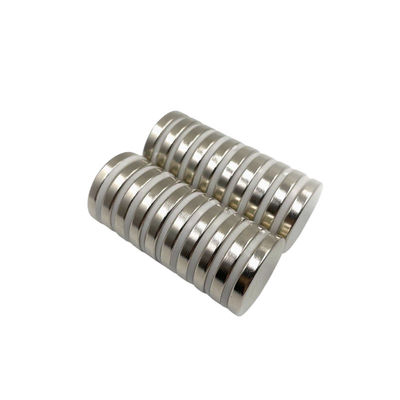

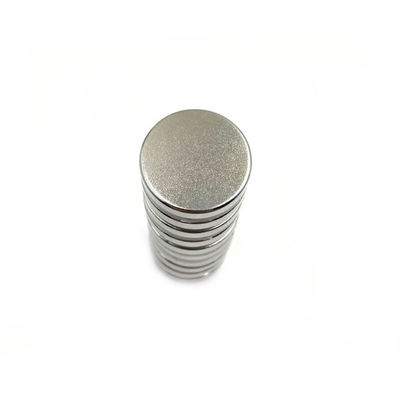

Sintered Neodymium Magnets are rare earth magnets made of Neodymium Iron Boron. They are powerful magnets that have the highest magnetic properties among all permanent magnets, and are widely used in various applications. These magnets are certified with ISO9001, IATF16949, and ISO14001, and can work in temperatures ranging from 80°C to 220°C.
Sintered Neodymium Magnets can be used in a variety of places, such as new energy cars, wind power generation, servo motors, and traction motors. These magnets are available in a wide range of grades, including N35-N52, 35M-50M, 35H-48H, 30SH-45SH, and so on.
Sintered Neodymium Magnets are the most powerful and reliable magnets available in the market today. Their superior magnetic properties make them ideal for a variety of applications, making them the perfect solution for your needs.
| Parameter Name | Parameter Values | Unit |
| Curie Temperature | 310～380 | ℃ |
| Relative Recoil Permeability | 1.02～1.05 | |
| Reversible Temperature Coefficient of Br (20~100℃) | -0.09～-0.13 | %/℃ |
| Reversible Temperature Coefficient of Hcj (20~100℃) | -0.4～-0.7 | %/℃ |
| Density | 7.50～7.70 | g/cm3 |
| Vickers Hardness | 550～700 | |
| Bending Strength | -0.09～-0.13 | MPa |
| Tensile Strength | ≥80 | MPa |
| Compressive Strength | 800 ~1050 | MPa |
| Electric Resistivity | 150 | μΩ·cm |
| Thermal Conductivity | 8～10 | W/(M·℃) |
| Coefficient of Thermal Expansion (Parallel to the orientation) |
5 | 10-6/K |
| Coefficient of Thermal Expansion (vertical to the orientation) |
-1.5 | 10-6/K |
| Young's Modulus | 150～200 | GPa |
| Specific Heat(20℃～320℃) | 3.0～4.6 | J/(g·k) |
| weight loss(low weight loss products) | ≤2 | mg/cm2 |
| Technical Parameter | Property |
|---|---|
| Certification | ISO9001, IATF16949, ISO14001 |
| Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
| Application | New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors |
| Shape | Block,Arc,Ring,Customized Shape Magnet |
| Material | Neodymium Iron Boron |
| Magnetic Orientation | As Customization |
| Coating | Nickel,NiCuNi,Zinc,Epoxy Etc |
| Working Temperature | 80~220°C |
| N42 Magnet | NdFeB |
| N35 Magnet | NdFeB |
| N52 Magnet | NdFeB |
| N45 Magnet | NdFeB |
| Neodymium Magnet | NdFeB |
UNMAG's sintered neodymium magnet is a high-performance, cost-effective product with a wide range of applications. It is made of neodymium iron boron and has a strong magnetic force and coercive force. With its unique properties, UNMAG's sintered neodymium magnet can be used in a variety of industries, such as new energy cars, wind power generation, servo motors, traction motors and so on. It is available in different grades, such as N35 to N52, 35M to 50M, 35H to 48H, and 30SH to 45SH. It can also be produced in different shapes, such as block, arc, ring or customized shape. In addition, UNMAG's sintered neodymium magnet is coated with nickel, NiCuNi, zinc, or epoxy to enhance its performance. It is a perfect choice for applications requiring N35 magnet, bar magnet, N52 magnet, or neodymium iron boron. Moreover, it is suitable for wind power generation due to its consistent magnetic properties.
Tolearance Control
| Name | Dimension(mm) | Tolerance(mm) |
| Wall thickness | T≤10 | ±0.04 |
| 10<T≤30 | ±0.05 | |
| 30<T≤50 | ±0.06 | |
| Length | L≤10 | ±0.04 |
| 10<L≤30 | ±0.05 | |
| 30<T≤50 | ±0.05 | |
| L>50 | ±0.08 | |
| Width | W>50 | ±0.05 |
| L>50 | W≥50 | ±0.08 |
Customized Sintered Neodymium Magnet
Sintered Neodymium Magnet is packaged and shipped in a variety of ways depending on its size and quantity. Generally, small magnets are packed in a bubble wrap or foam to prevent damage during shipping. Larger magnets may require more secure packaging such as wooden crates or boxes. In addition, all shipments should be labeled with the appropriate shipping information.
Shipping of Sintered Neodymium Magnet is usually done through an expedited courier service. This ensures that the product is delivered in a timely manner and with minimal risk of damage. Depending on the size and quantity of the magnet, shipping costs can vary, so it is important to discuss the details of shipping with the supplier.
|
|
| Brand Name: | UNMAG |
| MOQ: | 100pcs |
| Price: | As negotiation |
| Packaging Details: | cartons,pallets |
| Payment Terms: | T/T L/C |
Sintered Neodymium Magnets are rare earth magnets made of Neodymium Iron Boron. They are powerful magnets that have the highest magnetic properties among all permanent magnets, and are widely used in various applications. These magnets are certified with ISO9001, IATF16949, and ISO14001, and can work in temperatures ranging from 80°C to 220°C.
Sintered Neodymium Magnets can be used in a variety of places, such as new energy cars, wind power generation, servo motors, and traction motors. These magnets are available in a wide range of grades, including N35-N52, 35M-50M, 35H-48H, 30SH-45SH, and so on.
Sintered Neodymium Magnets are the most powerful and reliable magnets available in the market today. Their superior magnetic properties make them ideal for a variety of applications, making them the perfect solution for your needs.
| Parameter Name | Parameter Values | Unit |
| Curie Temperature | 310～380 | ℃ |
| Relative Recoil Permeability | 1.02～1.05 | |
| Reversible Temperature Coefficient of Br (20~100℃) | -0.09～-0.13 | %/℃ |
| Reversible Temperature Coefficient of Hcj (20~100℃) | -0.4～-0.7 | %/℃ |
| Density | 7.50～7.70 | g/cm3 |
| Vickers Hardness | 550～700 | |
| Bending Strength | -0.09～-0.13 | MPa |
| Tensile Strength | ≥80 | MPa |
| Compressive Strength | 800 ~1050 | MPa |
| Electric Resistivity | 150 | μΩ·cm |
| Thermal Conductivity | 8～10 | W/(M·℃) |
| Coefficient of Thermal Expansion (Parallel to the orientation) |
5 | 10-6/K |
| Coefficient of Thermal Expansion (vertical to the orientation) |
-1.5 | 10-6/K |
| Young's Modulus | 150～200 | GPa |
| Specific Heat(20℃～320℃) | 3.0～4.6 | J/(g·k) |
| weight loss(low weight loss products) | ≤2 | mg/cm2 |
| Technical Parameter | Property |
|---|---|
| Certification | ISO9001, IATF16949, ISO14001 |
| Grade | N35-N52, 35M-50M, 35H-48H, 30SH-45SH... |
| Application | New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors |
| Shape | Block,Arc,Ring,Customized Shape Magnet |
| Material | Neodymium Iron Boron |
| Magnetic Orientation | As Customization |
| Coating | Nickel,NiCuNi,Zinc,Epoxy Etc |
| Working Temperature | 80~220°C |
| N42 Magnet | NdFeB |
| N35 Magnet | NdFeB |
| N52 Magnet | NdFeB |
| N45 Magnet | NdFeB |
| Neodymium Magnet | NdFeB |
UNMAG's sintered neodymium magnet is a high-performance, cost-effective product with a wide range of applications. It is made of neodymium iron boron and has a strong magnetic force and coercive force. With its unique properties, UNMAG's sintered neodymium magnet can be used in a variety of industries, such as new energy cars, wind power generation, servo motors, traction motors and so on. It is available in different grades, such as N35 to N52, 35M to 50M, 35H to 48H, and 30SH to 45SH. It can also be produced in different shapes, such as block, arc, ring or customized shape. In addition, UNMAG's sintered neodymium magnet is coated with nickel, NiCuNi, zinc, or epoxy to enhance its performance. It is a perfect choice for applications requiring N35 magnet, bar magnet, N52 magnet, or neodymium iron boron. Moreover, it is suitable for wind power generation due to its consistent magnetic properties.
Tolearance Control
| Name | Dimension(mm) | Tolerance(mm) |
| Wall thickness | T≤10 | ±0.04 |
| 10<T≤30 | ±0.05 | |
| 30<T≤50 | ±0.06 | |
| Length | L≤10 | ±0.04 |
| 10<L≤30 | ±0.05 | |
| 30<T≤50 | ±0.05 | |
| L>50 | ±0.08 | |
| Width | W>50 | ±0.05 |
| L>50 | W≥50 | ±0.08 |
Customized Sintered Neodymium Magnet
Sintered Neodymium Magnet is packaged and shipped in a variety of ways depending on its size and quantity. Generally, small magnets are packed in a bubble wrap or foam to prevent damage during shipping. Larger magnets may require more secure packaging such as wooden crates or boxes. In addition, all shipments should be labeled with the appropriate shipping information.
Shipping of Sintered Neodymium Magnet is usually done through an expedited courier service. This ensures that the product is delivered in a timely manner and with minimal risk of damage. Depending on the size and quantity of the magnet, shipping costs can vary, so it is important to discuss the details of shipping with the supplier.
