Brand Name: | UNMAG |
MOQ: | 100pcs |
Price: | As negotiation |
Delivery Time: | 20-25days |
Payment Terms: | T/T L/C |

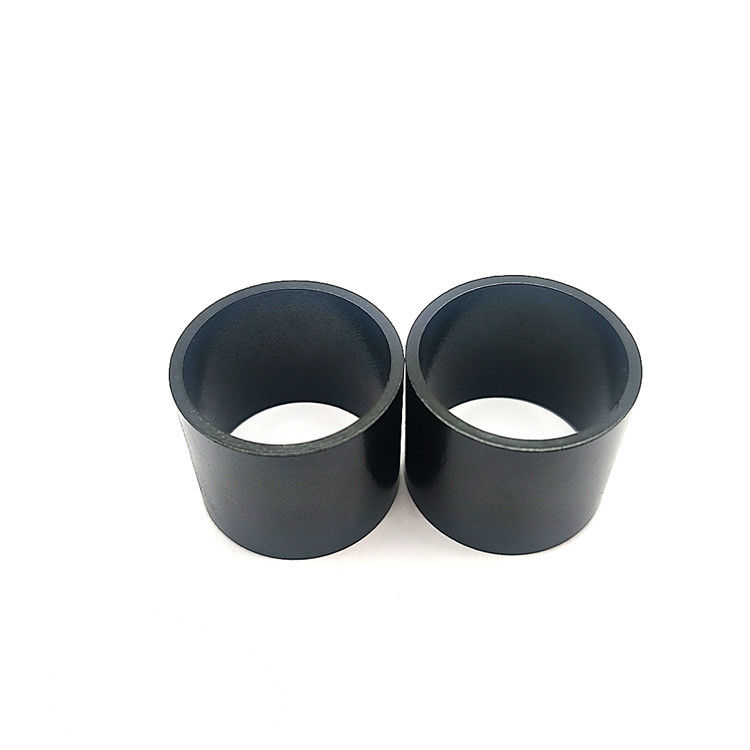

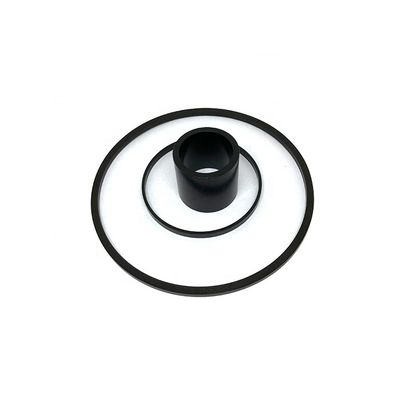

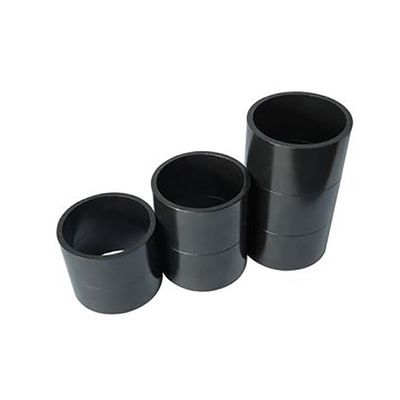

Bonded Neodymium Magnets, also known as Neodymium Bonded Magnets, are a type of Bonded Magnets composed of Neodymium Magnets. They are extremely hard and have a very high Max Operating Temperature of between 120°C-150°C. Our Bonded Neodymium Magnet comes with varied Size and Coating (such as Epoxy, Nickel, Parylene, etc.), and can be customized to meet your special requirements. MOQ is 100 Pieces.
Physical Properties of Bonded Neodymium Magnet
Parameter Name | Unit | Value |
Density | g/cm³ | 4.0-6.5 |
Curie Temperature | ℃ | 300-350 |
Recoil Permeability | μrec | 1.2 |
Temperature Coefficient | %/℃ | -0.17 |
Hardness | Hv | 80-120 |
Resistivity | Ω.cm | 0.026 |
Compressive Strength | kgf/mm² | 3 |
Flexural Strength | kg/mm² | 25 |
Thermal Expansivity | 10-6/℃ | 1-2 |
Magnetic Characteristics and Physical Properties of Bonded Compression Moulding NdFeB
Grade | Unit | BN-2 | BN-4 | BN-6 | BN-8L | BN-8 | BN-8SR | BN-10 | BN-10H | BN-12 | BN-12L | BN-13L |
Remanence (Br) |
(mT) | 300-400 | 400-500 | 500-600 | 600-650 | 630-680 | 620-680 | 680-730 | 700-750 | 720-770 | 760-810 | 780-830 |
Max. Energy Product (Hcb) |
(KA/m) | 240-320 | 240-320 | 320-400 | 360-440 | 400-480 | 400-480 | 400-480 | 440-520 | 440-520 | 400-480 | 400-480 |
(KOe) | (3.0-4.0) | (3.0-4.0) | (4.0-5.0) | (4.5-5.5) | (5.0-6.0) | (5.0-6.0) | (5.0-6.0) | (4.5-6.5) | (5.5-6.5) | (5.0-6.0) | (5.0-6.0) | |
Max. Energy Product (Hcj) |
(KA/m) | 480-640 | 560-720 | 560-720 | 640-800 | 640-800 | 880-1120 | 640-800 | 640-800 | 720-800 | 480-640 | 480-640 |
(KOe) | (6.0-8.0) | (7.0-9.0) | (7.0-9.0) | (8.0-10.0) | (8.0-10.0) | (11.0-14.0) | (8.0-10.0) | (8.0-10.0) | (9.0-10.0) | (6.0-8.0) | (6.0-8.0) | |
Max. Energy Product (BH max) |
(KJ/m3) | 24-32 | 32-44 | 52-60 | 60-68 | 68-76 | 68-76 | 76-84 | 80-88 | 88-96 | 88-96 | 88-104 |
(MGOe) | (3.0-4.0) | (4.0-5.5) | (6.5-7.5) | (7.5-8.5) | (8.5-9.5) | (8.5-9.5) | (9.5-10.5) | (10.0-11.0) | (11.0-12.0) | (11.0-12.0) | (11.0-13.0) | |
Recoil Permeability (ur) |
(μ H/M) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
Tempetrature Coefficient | (%/℃) | -0.11 | -0.11 | -0.11 | -0.11 | -0.11 | -0.1 | -0.1 | -0.1 | -0.1 | -0.12 | -0.12 |
Curie Temperature (Tc) |
(℃) | 300 | 300 | 300 | 300 | 350 | 350 | 350 | 350 | 350 | 320 | 320 |
Max.Operating Temperature | (℃) | 160 | 160 | 160 | 160 | 160 | 180 | 160 | 160 | 160 | 150 | 150 |
Max. Energy Product | (KA/m) | >1600 | >1600 | >1600 | >1600 | >1600 | >3000 | >1600 | >1600 | >1600 | >1600 | >1600 |
(KOe) | >20 | >20 | >20 | >20 | >20 | >25 | >20 | >20 | >20 | >20 | >20 | |
Density (ρ) |
(g/cm3) | 4.5-5.0 | 5.0-5.5 | 5.5-6.0 | 5.8-6.0 | 5.8-6.1 | 5.8-6.1 | 5.8-6.1 | 6.0-6.3 | 6.0-6.3 | 6.0-6.3 | 6.1-6.4 |
Hardness | HRB | 40-45 | 40-45 | 40-45 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 |
UNMAG Bonded Neodymium Magnets, also known as Neo-Bonded Magnet, are made of NdFeB Alloy Powder and are produced by China-based UNMAG. These Bonded Neo-Magnet come in five grades: BN-4, BN-6, BN-8, BN-10 and BN-12L, and are suitable for a variety of applications, including Spinder Motor, Stepping Motor, Synchronous Motor, DC Motor, and Brushless Motor. Depending on the application, UNMAG Bonded Neodymium Magnets can be magnetized in Axial, Radial, and Multi-poles directions. The delivery time for UNMAG Bonded Neodymium Magnets is 25-30 days and they are packed in Carton Box, Pallet, or other suitable packaging.
UNMAG Bonded Neodymium Magents are high-performance permanent magnets with features of high energy, high coercivity, and high remanence. Manufactured with NdFeB alloy powder and various coating options, they are widely used in motors, sensors, medical devices and more.
UNMAG Bonded Neodymium Magnets provide excellent performance and reliability, and are available in a range of sizes and shapes to suit your needs.
Packaging and Shipping for Bonded Neodymium Magnet:
The Bonded Neodymium Magnet is packaged in a secure cardboard box that is sealed and labeled for easy identification. The box is then placed in a larger box or container for secure storage and transportation. The box is then placed on a pallet and strapped down for extra security. Shipping is done via ground or air transport.
