| Brand Name: | UNMAG |
| MOQ: | 100pcs |
| Price: | As negotiation |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T L/C |

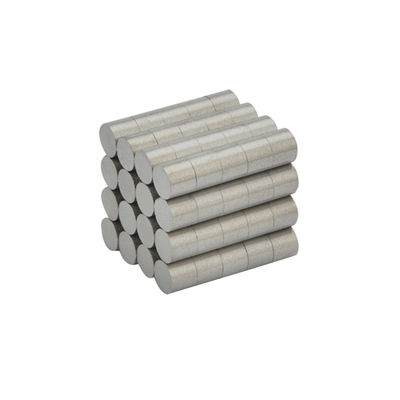

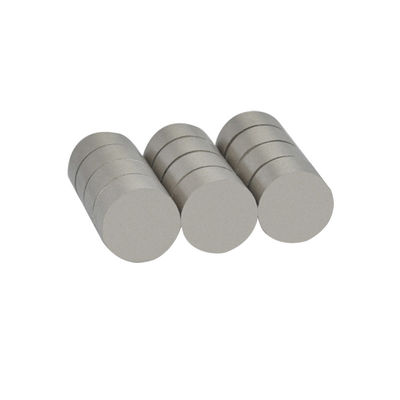

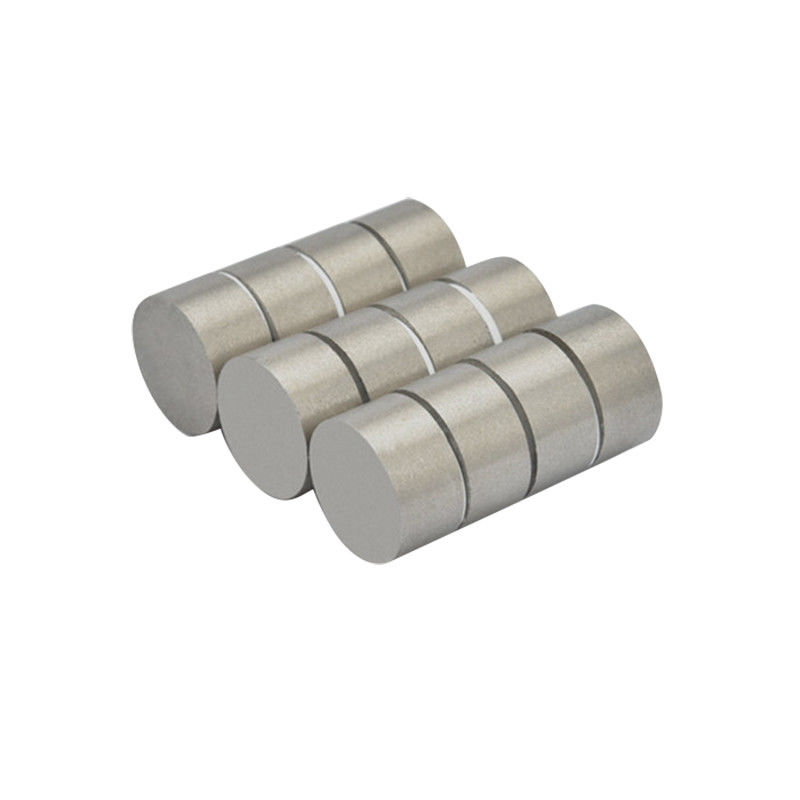

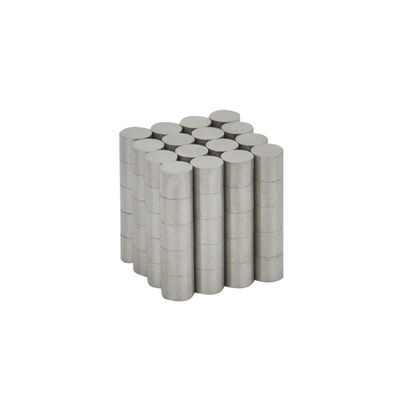

Samarium Cobalt Magnet is a kind of rare earth permanent magnet consisting of samarium-cobalt alloy. It has strong magnetic properties and excellent corrosion resistance. With high working temperature up to 250-500°C, it is widely used in spaceflight, national defense, microwave, sensors and other industrial applications. Samarium Cobalt Magnet is available in various grades, including YXG-26H, YXG-30H, YXG-28, YXG-30 and YXG-32. It also can be magnetized through axial, thickness or customized as per customer’s requirements. Samarium-Cobalt Alloy Magnets offer superior performance and higher energy product compared with other traditional magnet materials. Samarium-cobalt magnet materials have the advantages of high coercive force, high magnetic energy product and low temperature coefficient.
| Grade | Remanence (Br) |
Coercivity (Hcb) |
Intrinsic Coercivity (Hcj) |
|
Curie Temperature (TC) |
Max Work Temp (TW) |
Temperature Coefficient of Br (Br) |
Temperature Coefficient of Hcj (Hcj) |
||||||
| T | kGS | kA/m | KOe | KA/m | KOe | KJ/m3 | MGOe | ℃ | ℃ | %℃ | %℃ | |||
| YX-16s | 0.79-0.84 | 7.9-8.4 | 620-660 | 7.8-8.3 | ≥1830 | ≥23 | 118-135 | 15-17 | 750 | 250 | -0.035 | -0.28 | ||
| YX-18s | 0.84-0.89 | 8.4-8.9 | 660-700 | 8.3-8.8 | ≥1830 | ≥23 | 135-151 | 17-19 | 750 | 250 | -0.040 | -0.28 | ||
| YX-20s | 0.89-0.93 | 8.9-9.3 | 684-732 | 8.6-9.2 | ≥1830 | ≥23 | 150-167 | 19-21 | 750 | 250 | -0.045 | -0.28 | ||
| YX-22s | 0.92-0.96 | 9.2-9.6 | 710-756 | 8.9-9.5 | ≥1830 | ≥23 | 167-183 | 21-23 | 750 | 250 | -0.045 | -0.28 | ||
| YX-24s | 0.96-1.00 | 9.6-10.0 | 740-788 | 9.3-9.9 | ≥1830 | ≥23 | 183-199 | 23-25 | 750 | 250 | -0.045 | -0.28 | ||
| LTc(YX-10) | 0.62-0.66 | 6.2-6.6 | 485-517 | 6.1-6.5 | ≥1830 | ≥23 | 75-88 | 9.5-11 | 750 | 300 | Temp Range | Br Temp Coefficient％℃ | ||
| 20-100℃ | +0.0156％℃ | |||||||||||||
| 100-200℃ | +0.0087％℃ | |||||||||||||
| 200-300℃ | +0.0007％℃ | |||||||||||||
| YX-12 | 0.70-0.74 | 7.0-7.4 | 358-390 | 4.5-4.9 | 358-478 | 4.5-6 | 80-103 | 10-13 | 450 | 200 | ||||
| YXG-24H | 0.95-1.02 | 9.5-10.2 | 692-764 | 8.7-9.6 | ≥1990 | ≥25 | 175-191 | 22-24 | 800 | 350 | -0.025 | -0.20 | ||
| YXG-26H | 1.02-1.05 | 10.2-10.5 | 748-796 | 9.4-10.0 | ≥1990 | ≥25 | 191-207 | 24-26 | 800 | 350 | -0.030 | -0.20 | ||
| YXG-28H | 1.03-1.08 | 10.3-10.8 | 756-812 | 9.5-10.2 | ≥1990 | ≥25 | 207-220 | 26-28 | 800 | 350 | -0.035 | -0.20 | ||
| YXG-30H | 1.08-1.10 | 10.8-11.0 | 788-835 | 9.9-10.5 | ≥1990 | ≥25 | 220-240 | 28-30 | 800 | 350 | -0.035 | -0.20 | ||
| YXG-32H | 1.10-1.13 | 11.0-11.3 | 812-860 | 10.2-10.8 | ≥1990 | ≥25 | 230-255 | 29-32 | 800 | 350 | -0.035 | -0.20 | ||
| YXG-22 | 0.93-0.97 | 9.3-9.7 | 676-740 | 8.5-9.3 | ≥1433 | ≥18 | 160-183 | 20-23 | 800 | 300 | -0.020 | -0.20 | ||
| YXG-24 | 0.95-1.02 | 9.5-10.2 | 692-764 | 8.7-9.6 | ≥1433 | ≥18 | 175-191 | 22-24 | 800 | 300 | -0.025 | -0.20 | ||
| YXG-26 | 1.02-1.05 | 10.2-10.5 | 748-796 | 9.4-10.0 | ≥1433 | ≥18 | 191-207 | 24-26 | 800 | 300 | -0.030 | -0.20 | ||
| YXG-28 | 1.03-1.08 | 10.3-10.8 | 756-812 | 9.5-10.2 | ≥1433 | ≥18 | 207-220 | 26-28 | 800 | 300 | -0.035 | -0.20 | ||
| YXG-30 | 1.08-1.10 | 10.8-11.0 | 788-835 | 9.9-10.5 | ≥1433 | ≥18 | 220-240 | 28-30 | 800 | 300 | -0.035 | -0.20 | ||
| YXG-32 | 1.10-1.13 | 11.0-11.3 | 812-860 | 10.2-10.8 | ≥1433 | ≥18 | 230-255 | 29-32 | 800 | 300 | -0.035 | -0.20 | ||
| YXG-26M | 1.02-1.05 | 10.2-10.5 | 676-780 | 8.5-9.8 | 955-1433 | 12-18 | 191-207 | 24-26 | 800 | 300 | -0.035 | -0.20 | ||
| YXG-28M | 1.03-1.08 | 10.3-10.8 | 676-796 | 8.5-10.0 | 955-1433 | 12-18 | 207-220 | 26-28 | 800 | 300 | -0.035 | -0.20 | ||
| YXG-30M | 1.08-1.10 | 10.8-11.0 | 676-835 | 8.5-10.5 | 955-1433 | 12-18 | 220-240 | 28-30 | 800 | 300 | -0.035 | -0.20 | ||
| YXG-32M | 1.10-1.13 | 11.0-11.3 | 676-852 | 8.5-10.7 | 955-1433 | 12-18 | 230-255 | 29-32 | 800 | 300 | -0.035 | -0.20 | ||
| YXG-24L | 0.95-1.02 | 9.5-10.2 | 541-716 | 6.8-9.0 | 636-955 | 8-12 | 175-191 | 22-24 | 800 | 250 | -0.025 | -0.20 | ||
| YXG-26L | 1.02-1.05 | 10.2-10.5 | 541-748 | 6.8-9.4 | 636-955 | 8-12 | 191-207 | 24-26 | 800 | 250 | -0.035 | -0.20 | ||
| YXG-28L | 1.03-1.08 | 10.3-10.8 | 541-764 | 6.8-9.6 | 636-955 | 8-12 | 207-220 | 26-28 | 800 | 250 | -0.035 | -0.20 | ||
| YXG-30L | 1.08-1.15 | 10.8-11.5 | 541-796 | 6.8-10.0 | 636-955 | 8-12 | 220-240 | 28-30 | 800 | 250 | -0.035 | -0.20 | ||
| YXG-32L | 1.10-1.15 | 11.0-11.5 | 541-812 | 6.8-10.2 | 636-955 | 8-12 | 230-255 | 29-32 | 800 | 250 | -0.035 | -0.20 | ||
| LTC(YXG-22) | 0.94-0.98 | 9.4-9.8 | 668-716 | 8.4-9.0 | ≥1433 | ≥18 | 167-183 | 21-23 | 840 | 300 | Temp Range | Br Temp Coefficient％℃ | ||
| –50-25℃ | ﹢0.005％℃ | |||||||||||||
| 20-100℃ | -0.008％℃ | |||||||||||||
| 100-200℃ | -0.008％℃ | |||||||||||||
| 200-300℃ | -0.011％℃ | |||||||||||||
| Parameter Name | Unit | SmCo5 | Sm2Co17 |
| Density | g/cm³ | 8.2 ~ 8.4 | 8.3 ~ 8.5 |
| Curie Temperature | ℃ | 700 ~ 750 | 800 ~ 850 |
| Max. Operating Temperature 250 350 | ℃ | 250 | 350 |
| Temperature Coefficient Of Br -0.05 -0.03 | %/℃ | -0.05 | -0.03 |
| Vickers Hardness 450 ~ 500 550 ~600 | HV | 450 ~ 500 | 550 ~600 |
| Electronic Ressistivity | Ω.cm | 5 ~ 6 x 10(-5) | 8 ~ 9 x 10(-5) |
| Thermal Conductivity | W/mK | 12 | 13 |
UNMAG Samarium Cobalt Magnet is a powerful magnet made of Samarium-Cobalt material with good temperature stability and high magnetic performance. It is produced in China and has a delivery time of 25-30days. It can be used in various application fields such as Spaceflight, National Defense, Microwave, Sensors and more. The magnetization of UNMAG Samarium Cobalt Magnet can be Through Axial, Thickness or customized. It comes in five grades of YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32, and the coating can be Uncoated.
Are you looking for Samarium Cobalt Magnets? UNMAG is here to provide you with customized Samarium-Cobalt Alloy Magnets with excellent quality and performance. Our Samarium-Cobalt Alloy Magnets are made of superior Samarium Cobalt material and have a wide range of grades, such as YXG-26H, YXG-30H, YXG-28, YXG-30, YXG-32, and are perfect for spaceflight, national defense, microwave, sensors, etc.
UNMAG Samarium Cobalt Magnets are made in China and you can get them in 25-30days. All our Samarium Cobalt Magnets are uncoated and have an operating temperature range of 250-500°C.
Samarium Cobalt Magnets are delicate and require special packaging and shipping.
Packaging: Samarium Cobalt Magnets should be placed in a sealed container and sealed with a plastic film to prevent moisture from entering the container. The container should be labeled with the following information: product name, size, weight, and quantity.
Shipping: Samarium Cobalt Magnets should be shipped via a reliable shipping company that provides tracking information. The shipping company should be aware of the delicate nature of the product and should take extra care when handling the package.
|
|
