| Brand Name: | UNMAG |
| MOQ: | 100pcs |
| Price: | As negotiation |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T L/C |

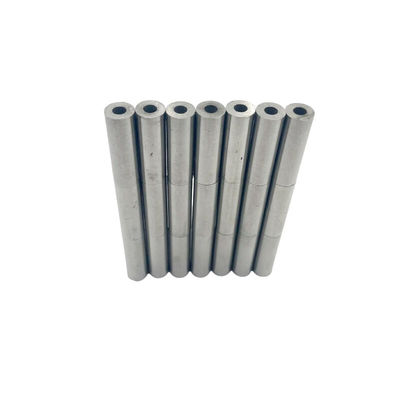

Alnico Permanent Magnet is a type of permanent magnet made of cast Alnico material that can be used in a variety of applications, such as generators, microphones, and measuring instruments. It is well known for its high coercivity (Hcj) of ≥30 KA/m, as well as its high magnetic energy product (BHmax) of 1.13-9 MGOe, and excellent dimensional tolerance of ±0.05mm. This Permanent Alnico Magnet is a reliable and durable component, making it an ideal choice for all kinds of applications. Whether it is Alnico Permanent Magnet or Permanent Magnet Alnico, this high-quality permanent magnet can provide an excellent performance.
| Magnetic Properties Of Alnico Magnet | ||||||||||||||
Grade |
Equivalent MMPA Class |
Remanence |
Intrinsic Coercivity |
Coercivity |
Maximum Energy Product |
Density | Reversible Temp. Coefficient |
Curie Temp. |
Temp.Coefficient |
Remark |
||||
| Br | Hcj | Hcb | (BH)max | g/cm3 | α(Br) | TC | TW | |||||||
| mT | Gs | KA/m | Oe | KA/m | Oe | KJ/m3 | MGOe | %/℃ | ℃ | ℃ | ||||
| FLN8 | Alnico3 | 520 | 5200 | 43 | 540 | 40 | 500 | 8-10 | 1.0-1.25 | 6.8 | -0.02 | 760 | 450 | Isotropic |
| FLNG12 | Alnico2 | 700 | 7000 | 43 | 540 | 40 | 500 | 12-14 | 1.5-1.75 | 7 | -0.014 | 810 | 450 | |
| FLNGT18 | Alnico8 | 600 | 6000 | 107 | 1350 | 95 | 1200 | 18-22 | 2.25-2.75 | 7.2 | -0.02 | 850 | 550 | |
| FLNGT28 | Alnico6 | 1000 | 10000 | 57 | 710 | 56 | 700 | 28-30 | 3.5-3.8 | 7.2 | -0.02 | 850 | 525 | Anisotropic |
| FLNG34 | Alnico5 | 1100 | 11000 | 51 | 640 | 50 | 630 | 34-38 | 3.5-4.15 | 7.2 | -0.016 | 890 | 525 | |
| FLNGT31 | Alnico8 | 780 | 7800 | 106 | 1130 | 104 | 1300 | 33-36 | 3.9-4.5 | 7.2 | -0.02 | 850 | 550 | |
| FLNGT38 | 800 | 8000 | 126 | 1580 | 123 | 1550 | 38-42 | 4.75-5.3 | 7.2 | -0.02 | 850 | 550 | ||
| FLNGT42 | 880 | 8800 | 122 | 1530 | 120 | 1500 | 42-48 | 5.3-6.0 | 7.25 | -0.02 | 850 | 550 | ||
| FLNGT33J | Alnico8HC | 680 | 6800 | 151 | 1885 | 140 | 1750 | 33～36 | 4.1-4.5 | 7.2 | -0.02 | 850 | 550 | |
| FLNGT40J | 800 | 8000 | 156 | 1950 | 144 | 1800 | 43~47 | 5.4~5.9 | 7.2 | -0.02 | 850 | 550 | ||
UNMAG is one of the leading China-based providers of Alnico Permanent Magnets, a product that offers superior performance and an excellent cost-benefit ratio. Our Alnico Permanent Magnets are well-known for their durability, reliable performance, and excellent magnetic properties. Our Alnico Magnets are made from cast Alnico and are available in Alnico 5 and Alnico 8 grades, with a BHmax of 1.13-9 MGOe.
Our Alnico Permanent Magnets are widely used in applications such as generators, microphones, and measuring instruments because of their excellent magnetic properties. We also offer custom-made Alnico Permanent Magnets to meet your specific needs. We guarantee a delivery time of 25-30 days and a tolerance of ±0.05mm.
UNMAG Alnico Permanent Magnet is a cast Alnico permanent magnet offering a high-quality, reliable solution with a wide range of applications. It is made in China with a delivery time of 25-30 days. With a maximum operating temperature of 550℃ and ±0.05mm tolerance, it offers high temperature resistance and dimensional accuracy. It is available in various shapes and sizes with a BHmax of 1.13-9 MGOe and magnetization direction in axial, radial, and multi-poles.
Alnico Permanent Magnets should be packaged in cardboard boxes to protect them from damage during shipping. The size of the box should be appropriate to the size of the magnet, and the magnets should be tightly secured in the box with bubble wrap or foam. Labels should be placed on the box to indicate the correct shipping address and any other necessary information. The box should then be sealed securely with tape to ensure that it stays closed during transport.
video
|
|
