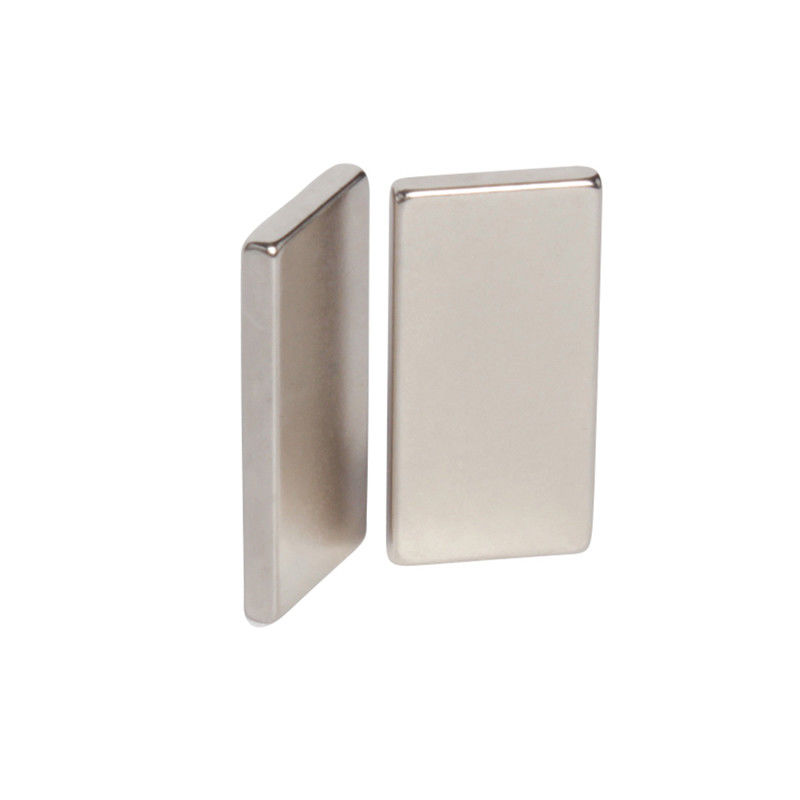

Customized Shape Sintered Neodymium Magnet With Nickel Coating And Magnetic Orientation

Brand Name:	UNMAG
Delivery Time:	20-25days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, IATF16949, ISO14001

Grade:

N35-N52, 35M-50M, 35H-48H, 30SH-45SH...

Material:

Neodymium Iron Boron

Coating:

Nickel,NiCuNi,Zinc,Epoxy Etc

Application:

New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors

Working Temperature:

80~220°C

Shape:

Block,Arc,Ring,Customized Shape Magnet

Magnetic Orientation:

As Customization

Packaging Details:

Carton Box

Highlight:

Nickel Coating sintered magnet

Customized Shape sintered magnet

Product Description

Introduction

Welcome to our product page for customized shape sintered neodymium magnets with nickel coating and customizable magnetic orientation. These high - performance magnets combine the superior magnetic properties of neodymium with the durability of nickel coating, offering versatile solutions for a wide range of industrial, commercial, and technical applications. Whether you need magnets for automotive systems, electronic devices, renewable energy projects, or custom - built machinery, our customized shape and magnetic orientation services ensure that you get the exact magnetic solution you need.

Physical Properties of Sintered Neodymium Magnet:

Parameter Name	Parameter Values	Unit
Curie Temperature	310～380	℃
Relative Recoil Permeability	1.02～1.05
Reversible Temperature Coefficient of Br (20~100℃)	-0.09～-0.13	%/℃
Reversible Temperature Coefficient of Hcj (20~100℃)	-0.4～-0.7	%/℃
Density	7.50～7.70	g/cm³
Vickers Hardness	550～700
Bending Strength	-0.09～-0.13	MPa
Tensile Strength	≥80	MPa
Compressive Strength	800 ~1050	MPa
Electric Resistivity	150	μΩ·cm
Thermal Conductivity	8～10	W/(M·℃)
Coefficient of Thermal Expansion (Parallel to the orientation)	5	10^-6/K
Coefficient of Thermal Expansion (vertical to the orientation)	-1.5	10^-6/K
Young's Modulus	150～200	GPa
Specific Heat(20℃～320℃)	3.0～4.6	J/(g·k)
weight loss(low weight loss products)	≤2	mg/cm²

Product Features

Superior Magnetic Performance: As sintered neodymium magnets, they possess high magnetic energy products, ensuring strong and effective magnetic fields even in compact designs.
Durable Nickel Coating: The magnets are protected by a high - quality nickel coating, which provides excellent corrosion resistance and environmental durability. This coating ensures the magnets can withstand harsh operating conditions, including humidity, temperature fluctuations, and exposure to corrosive substances.
Customizable Magnetic Orientation: We understand that different applications require different magnetic field directions. Our customizable magnetic orientation service allows you to specify the exact orientation you need, whether radial, axial, or any other direction.
Customized Shapes and Sizes: Our advanced manufacturing capabilities allow us to produce magnets in various shapes and sizes to meet your specific design requirements. From standard circular and rectangular shapes to complex, intricate geometries, we can bring your vision to life.
