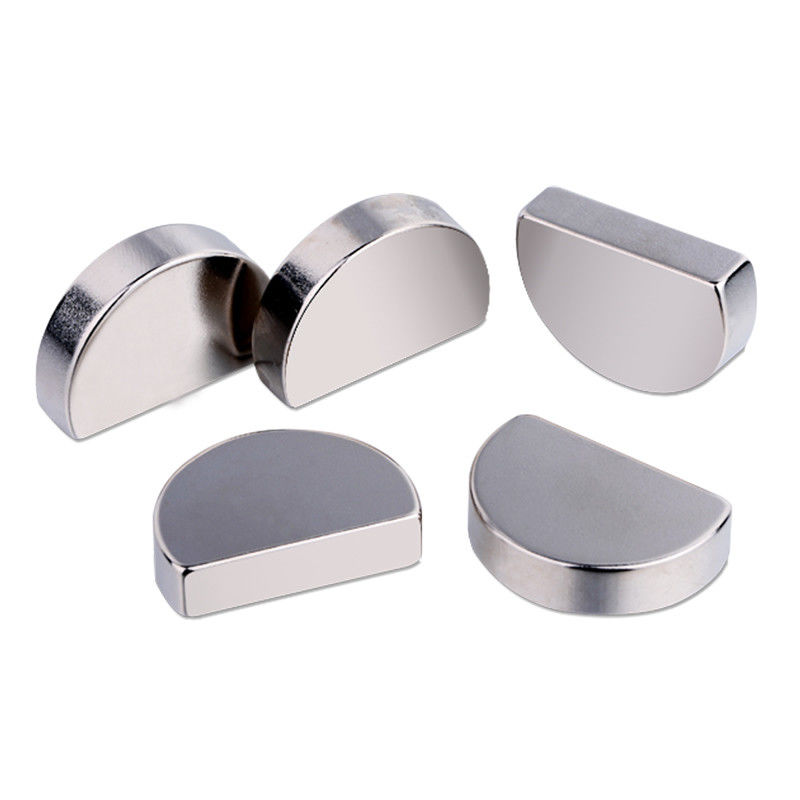

IATF 16949 Certified NdFeB Rare-Earth Magnet for Industrial Motors

Brand Name:	UNMAG
Delivery Time:	20-25days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, IATF16949, ISO14001

Material:

Neodymium Iron Boron

Magnetic Orientation:

As Customization

Grade:

N35-N52, 35M-50M, 35H-48H, 30SH-45SH...

Working Temperature:

80~220°C

Coating:

Nickel,NiCuNi,Zinc,Epoxy Etc

Shape:

Block,Arc,Ring,Customized Shape Magnet

Application:

New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors

Packaging Details:

Carton Box

Highlight:

IATF 16949 certified NdFeB magnet

rare-earth magnet for industrial motors

sintered neodymium industrial magnet

Product Description

IATF 16949 Certified NdFeB Rare-Earth Magnet for Industrial Motors

Product Attributes

Attribute	Value
Material	Neodymium Iron Boron
Magnetic Orientation	As Customization
Grade	N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Working Temperature	80~220°C
Coating	Nickel, NiCuNi, Zinc, Epoxy Etc
Shape	Block, Arc, Ring, Customized Shape Magnet
Application	New Energy Cars, Wind Power Generation, Servo Motors, Traction Motors

Product Overview

Our IATF 16949 certified neodymium iron boron (NdFeB) rare-earth magnets are manufactured to automotive-grade quality standards, ensuring magnetic consistency, dimensional accuracy, and full PPAP documentation for the most demanding industrial applications. From servo motors to magnetic separators, these magnets deliver maximum energy density with proven reliability.

Key Benefits

IATF 16949 Certified - Full PPAP Level 3, CPK ≥1.67 on critical dimensions.
Grade Range N35-N52EH - Br 11.7-14.8 kG, withstand 150 °C continuous operation.
±0.05 mm Tolerance - Press-fit into rotors without secondary machining.
Multi-Layer Coatings - Ni-Cu-Ni, epoxy, Zn, parylene ≥ 500 h salt-spray life.
Custom Shapes - Blocks, rings, arcs, segments, Halbach arrays.
7-Day Prototypes - Laser-cut tooling, fast sintering cycle.

Technical Specifications

Property	Typical Range
Material	Sintered Nd₂Fe₁₄B
Grades	N35, N38, N42, N48, N50, N52, N35EH-N52EH
Remanence (Br)	11.7-14.8 kG
Coercivity (Hcj)	12-30 kOe (EH grade)
Max Operating Temp	80 °C (N52) - 150 °C (EH)
Dimensions	1 mm³ - 200 mm³ blocks, OD ≤ 120 mm rings
Tolerance	±0.05 mm, ±0.1° angles
Coatings	Ni-Cu-Ni, Zn, black epoxy, parylene
Certifications	IATF 16949, ISO 9001, ISO 14001, RoHS, REACH

Industrial Applications

Servo & stepper motors - precise positioning, low cogging.
Automotive actuators - turbo, EGR, and brake systems.
Wind-turbine generators - high flux density at low RPM.
Magnetic separators & couplings - reliable separation torque.
Sensors & encoders - stable magnetic field over temperature.
