| MOQ: | 100pcs |
| Price: | As negotiation |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T L/C |

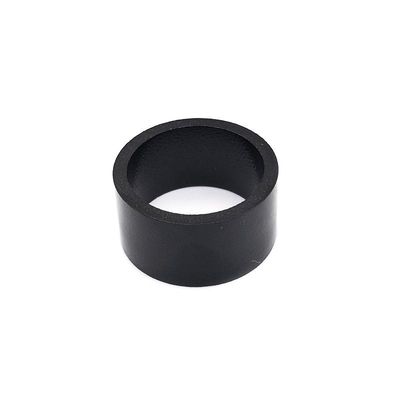

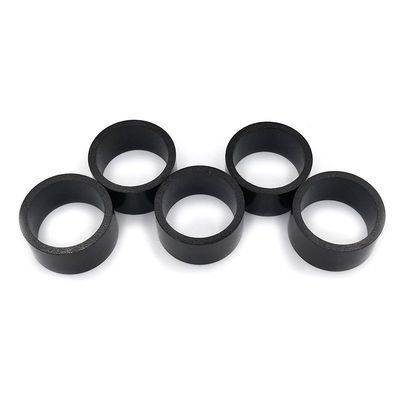

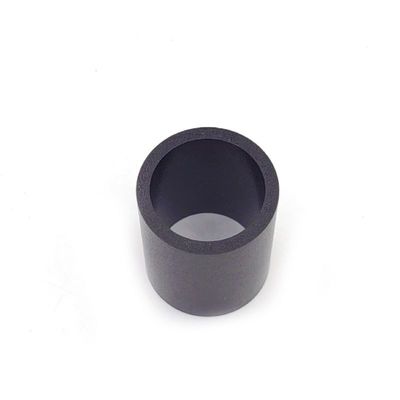

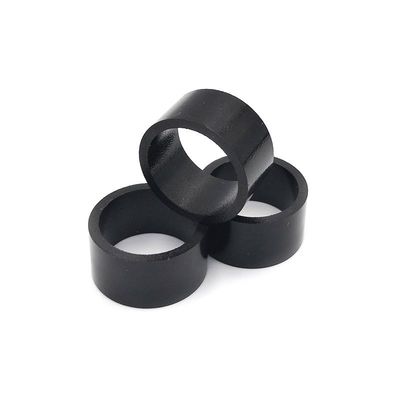

Bonded Neodymium Magnet is a type of multi pole ring magnet made of bonded NdFeB material. It is available in various shapes such as disc, block, cylinder and ring, and can be customized in size. It has a wide range of applications, including spinder motor, stepping motor, synchronous motor, DC motor, brushless motor and other motors. The minimum order quantity is 100 pieces, and the packaging is usually in carton boxes or pallets. Bonded Neodymium Magnet is a perfect choice for you to meet your needs for high performance and cost-effective permanent magnets.
Magnetic Characteristics and Physical Properties of Bonded Compression Moulding NdFeB
| Grade | Unit | BN-2 | BN-4 | BN-6 | BN-8L | BN-8 | BN-8SR | BN-10 | BN-10H | BN-12 | BN-12L | BN-13L |
| Remanence (Br) |
(mT) | 300-400 | 400-500 | 500-600 | 600-650 | 630-680 | 620-680 | 680-730 | 700-750 | 720-770 | 760-810 | 780-830 |
| Max. Energy Product (Hcb) |
(KA/m) | 240-320 | 240-320 | 320-400 | 360-440 | 400-480 | 400-480 | 400-480 | 440-520 | 440-520 | 400-480 | 400-480 |
| (KOe) | (3.0-4.0) | (3.0-4.0) | (4.0-5.0) | (4.5-5.5) | (5.0-6.0) | (5.0-6.0) | (5.0-6.0) | (4.5-6.5) | (5.5-6.5) | (5.0-6.0) | (5.0-6.0) | |
| Max. Energy Product (Hcj) |
(KA/m) | 480-640 | 560-720 | 560-720 | 640-800 | 640-800 | 880-1120 | 640-800 | 640-800 | 720-800 | 480-640 | 480-640 |
| (KOe) | (6.0-8.0) | (7.0-9.0) | (7.0-9.0) | (8.0-10.0) | (8.0-10.0) | (11.0-14.0) | (8.0-10.0) | (8.0-10.0) | (9.0-10.0) | (6.0-8.0) | (6.0-8.0) | |
| Max. Energy Product (BH max) |
(KJ/m3) | 24-32 | 32-44 | 52-60 | 60-68 | 68-76 | 68-76 | 76-84 | 80-88 | 88-96 | 88-96 | 88-104 |
| (MGOe) | (3.0-4.0) | (4.0-5.5) | (6.5-7.5) | (7.5-8.5) | (8.5-9.5) | (8.5-9.5) | (9.5-10.5) | (10.0-11.0) | (11.0-12.0) | (11.0-12.0) | (11.0-13.0) | |
| Recoil Permeability (ur) |
(μ H/M) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Tempetrature Coefficient | (%/℃) | -0.11 | -0.11 | -0.11 | -0.11 | -0.11 | -0.1 | -0.1 | -0.1 | -0.1 | -0.12 | -0.12 |
| Curie Temperature (Tc) |
(℃) | 300 | 300 | 300 | 300 | 350 | 350 | 350 | 350 | 350 | 320 | 320 |
| Max.Operating Temperature | (℃) | 160 | 160 | 160 | 160 | 160 | 180 | 160 | 160 | 160 | 150 | 150 |
| Max. Energy Product | (KA/m) | >1600 | >1600 | >1600 | >1600 | >1600 | >3000 | >1600 | >1600 | >1600 | >1600 | >1600 |
| (KOe) | >20 | >20 | >20 | >20 | >20 | >25 | >20 | >20 | >20 | >20 | >20 | |
| Density (ρ) |
(g/cm3) | 4.5-5.0 | 5.0-5.5 | 5.5-6.0 | 5.8-6.0 | 5.8-6.1 | 5.8-6.1 | 5.8-6.1 | 6.0-6.3 | 6.0-6.3 | 6.0-6.3 | 6.1-6.4 |
| Hardness | HRB | 40-45 | 40-45 | 40-45 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 |
Bonded Neodymium Magnets are widely used in various fields. With their high magnetic force, high magnetic flux density and excellent corrosion resistance, they are suitable for a variety of applications, such as motion control, electrical motors, sensors, generators, medical equipment, communication systems, automotive, household appliance and industrial automation.
Bonded Neodymium Magnets offer magnetization direction in axial, radial and multi-pole configurations that can effectively increase the magnetic force. This makes them perfect for applications where high magnetic force is required, such as electrical motors and generators.
Bonded Neodymium Magnets can be packaged in carton box or pallet, making it easier to transport and store them in a safe and secure way.
Bonded Neodymium Magnets can generate a pull force of up to 20kg. This makes them ideal for applications where high pull force is required.
Bonded Neodymium Magnets are made of NdFeB alloy powder, which offers excellent magnetic performance, high corrosion resistance, and good thermal stability.
The maximum operating temperature of bonded neodymium magnets is 120°C. This makes them suitable for applications that require high temperature resistance.
We offer bonded neodymium magnet customization services to suit your specific requirements. Our bonded arched NdFeB magnets can reach up to 20kg pull force and have a max operating temperature of 120°C. We offer various grades such as BN-6, BN-8, BN-10 and more. Our bonded neodymium magnets are ideal for spinder motor, stepping motor, synchronous motor, DC motor, brushless motor and more. We offer various packaging options such as carton boxes, pallets and more.
We offer the highest quality of technical support and service for our Bonded Neodymium Magnets. Our technicians are ready and available to help you with any questions or issues you may have with the product. We are committed to providing excellent customer service and will work with you to ensure your satisfaction. If you have any questions or concerns, please contact us and we will help you as soon as possible.
The Bonded Neodymium Magnet is packaged and shipped in an anti-static tote to prevent any damage to the magnet during transit. The tote is made of plastic and is sealed to protect the magnet from dust and debris. The tote is placed in a cardboard box which is then sealed and ready for shipping.
|
|
