| Brand Name: | UNMAG |
| MOQ: | 100pcs |
| Price: | As negotiation |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T L/C |

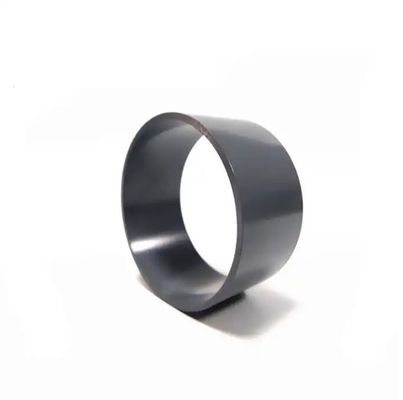

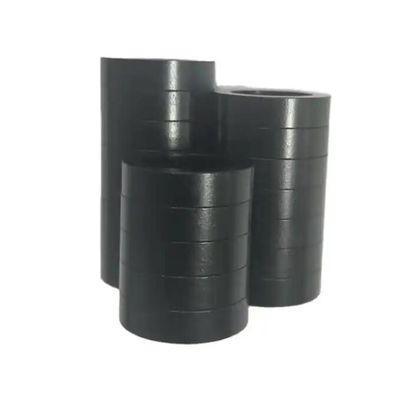

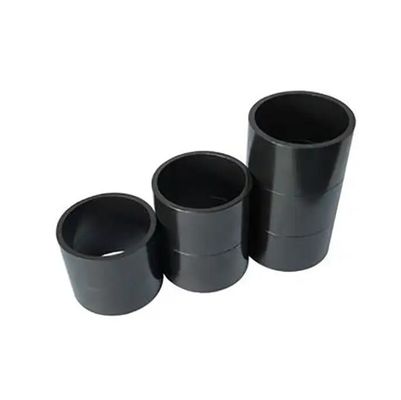

Bonded Neodymium Magnets are the perfect choice for high performance applications. Manufactured from a NdFeB alloy powder, these magnets can be used for a wide range of motors, such as spinder motors, stepping motors, synchronous motors, DC motors and brushless motors. With a maximum operating temperature of 120°C-150°C, they can be used in a wide range of temperature environments. The magnets are available in a variety of shapes and sizes, with a minimum order quantity of 100 pieces, and packaging options of carton boxes and pallets.
Bonded Neodymium Magnets are especially suitable for applications that require high levels of performance and robustness. They offer excellent magnetic properties, with a high level of magnetic strength and energy product, and are capable of delivering high performance even in the most testing conditions. The magnets are designed to be resistant to corrosion and abrasion, allowing them to retain their performance over time. The neodymium rings with 8 poles also offer superior performance and can be used in a range of applications.
Advantages
Compression Bonded:
Higher Magnetic Strength due to higher magnetic particle density.
Epoxy Binder / Resistant to normal industrial solvents and automotive fluids
Epoxy Coat after manufacturing to prevent oxidation
Temperature Range -40c – 180c
“Tight” tolerances off tool
Good mechanical strength
Disadvantages
Requires tooling and mold costs
Piece price will be low only in high volume
Low magnetic properties
Physical Properties of Bonded Neodymium Magnet
| Parameter Name | Unit | Value |
| Density | g/cm³ | 4.0-6.5 |
| Curie Temperature | ℃ | 300-350 |
| Recoil Permeability | μrec | 1.2 |
| Temperature Coefficient | %/℃ | -0.17 |
| Hardness | Hv | 80-120 |
| Resistivity | Ω.cm | 0.026 |
| Compressive Strength | kgf/mm² | 3 |
| Flexural Strength | kg/mm² | 25 |
| Thermal Expansivity | 10-6/℃ | 1-2 |
Magnetic Characteristics and Physical Properties of Bonded Compression Moulding NdFeB
| Grade | Unit | BN-2 | BN-4 | BN-6 | BN-8L | BN-8 | BN-8SR | BN-10 | BN-10H | BN-12 | BN-12L | BN-13L |
| Remanence (Br) |
(mT) | 300-400 | 400-500 | 500-600 | 600-650 | 630-680 | 620-680 | 680-730 | 700-750 | 720-770 | 760-810 | 780-830 |
| Max. Energy Product (Hcb) |
(KA/m) | 240-320 | 240-320 | 320-400 | 360-440 | 400-480 | 400-480 | 400-480 | 440-520 | 440-520 | 400-480 | 400-480 |
| (KOe) | (3.0-4.0) | (3.0-4.0) | (4.0-5.0) | (4.5-5.5) | (5.0-6.0) | (5.0-6.0) | (5.0-6.0) | (4.5-6.5) | (5.5-6.5) | (5.0-6.0) | (5.0-6.0) | |
| Max. Energy Product (Hcj) |
(KA/m) | 480-640 | 560-720 | 560-720 | 640-800 | 640-800 | 880-1120 | 640-800 | 640-800 | 720-800 | 480-640 | 480-640 |
| (KOe) | (6.0-8.0) | (7.0-9.0) | (7.0-9.0) | (8.0-10.0) | (8.0-10.0) | (11.0-14.0) | (8.0-10.0) | (8.0-10.0) | (9.0-10.0) | (6.0-8.0) | (6.0-8.0) | |
| Max. Energy Product (BH max) |
(KJ/m3) | 24-32 | 32-44 | 52-60 | 60-68 | 68-76 | 68-76 | 76-84 | 80-88 | 88-96 | 88-96 | 88-104 |
| (MGOe) | (3.0-4.0) | (4.0-5.5) | (6.5-7.5) | (7.5-8.5) | (8.5-9.5) | (8.5-9.5) | (9.5-10.5) | (10.0-11.0) | (11.0-12.0) | (11.0-12.0) | (11.0-13.0) | |
| Recoil Permeability (ur) |
(μ H/M) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Tempetrature Coefficient | (%/℃) | -0.11 | -0.11 | -0.11 | -0.11 | -0.11 | -0.1 | -0.1 | -0.1 | -0.1 | -0.12 | -0.12 |
| Curie Temperature (Tc) |
(℃) | 300 | 300 | 300 | 300 | 350 | 350 | 350 | 350 | 350 | 320 | 320 |
UNMAG bonded neodymium magnets are widely used in various industries due to their powerful magnetism, small size, and lightweight. It is a 12-pole magnet, which makes it suitable for a variety of applications. Not only does the magnet have a maximum operating temperature of 120°C-150°C, but it also can be customized in different sizes and shapes, such as disc, block, cylinder, and ring. Moreover, with its competitive price and fast delivery time of 25-30 days, it is a great choice for customers. The minimum order quantity is 100 pieces, and packaging is available in carton box and pallet.
Brand Name: UNMAG
Place of Origin: China
Delivery Time: 25-30days
Product Name: Bonded Neodymium Magnet
Magnetization Direction: Axial, Radial, Multi-poles
Application: Spinder Motor,Stepping Motor,Synchronous Motor,DC Motor, Brushless Motor Etc
Packaging: Carton Box, Pallet, Etc.
Size: Customized
We specialize in multi pole ring magnet, neodymium magnet ring 8 pole, bonded arched ndfeb magnet.
|
|
