Alnico Permanent Magnet
Created with Pixso. Multi Poles Rare Earth Ring Magnets Cast Alnico For Motor Generator

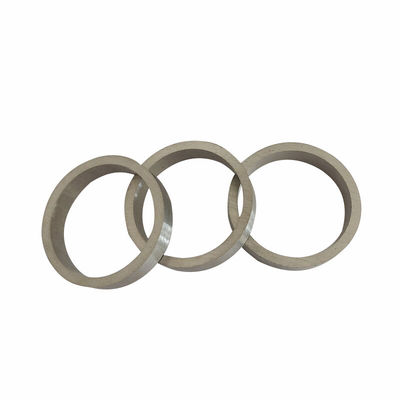

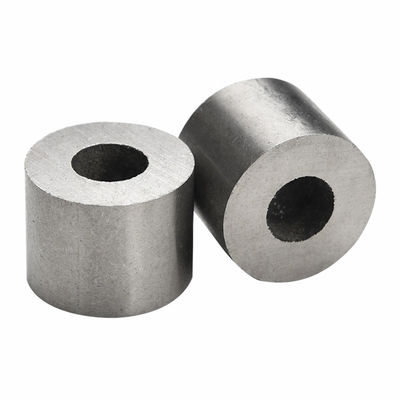

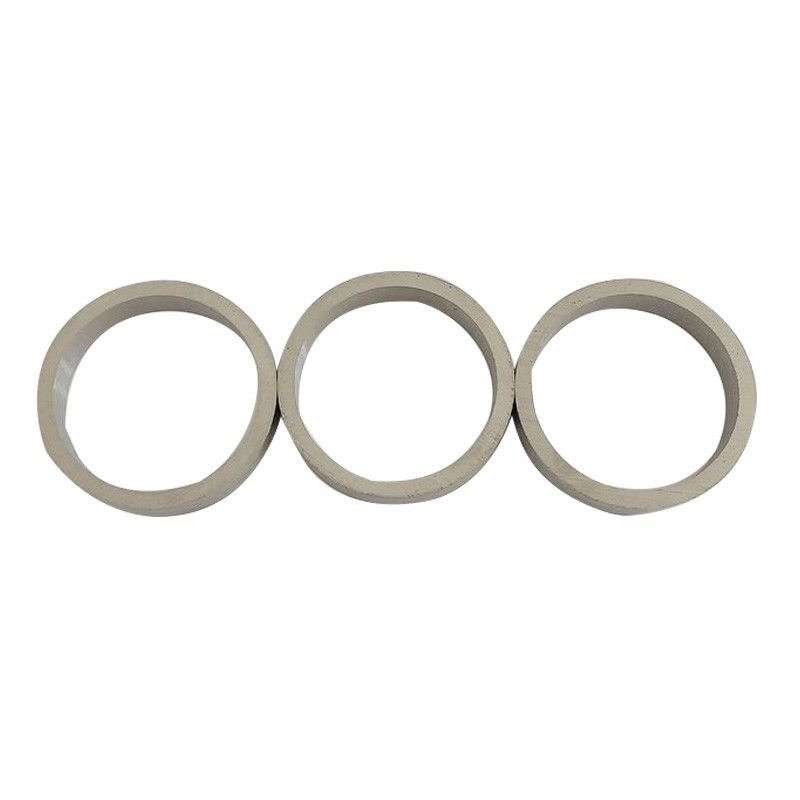

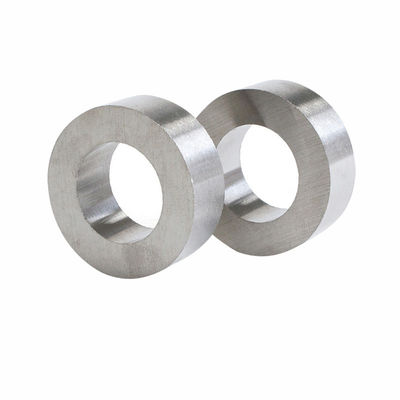

Multi Poles Rare Earth Ring Magnets Cast Alnico For Motor Generator

Brand Name: UNMAG
MOQ: 100pcs
Price: As negotiation
Delivery Time: 20-25days
Payment Terms: T/T L/C
Detail Information
Place of Origin:
China
Hcj:
≥30 KA/m
Magnetization Direction:
Axial, Radial, Multi-poles...
Type:
Permanent Magnet
Tolerance:
±0.05mm
Grade:
Alnico 5,8 Is Normally Used
Application:
Generator, Microphone, Measuring Instrument
BHmax:
1.13-9 MGOe
Max Operating Temperature:
550℃
Packaging Details:
cartons,pallets
Supply Ability:
20 tons per month for SmCo magnet
Highlight:

Multi Poles Rare Earth Ring Magnets

,

Cast Alnico Rare Earth Ring Magnets

Product Description

Alnico Permanent Magnet Multi-Poles For Motor Generator Speaker Sensors Switch

Product Description:

Alnico Permanent Magnet is a kind of permanent magnet material made of Alnico alloys. It has strong magnetism and high temperature resistance, which makes it widely used in many kinds of applications. Alnico Permanent Magnet is divided into Alnico9, Alnico8 and Alnico rod magnet, which can be magnetized in axial, radial and multipoles direction. Its BHmax ranges from 1.13 to 9 MGOe, and its maximum operating temperature can reach up to 550℃. In addition, the material of Alnico Permanent Magnet is Cast Alnico, which is widely used in Generator, Microphone, Measuring Instrument and more. With its excellent performance, Alnico Permanent Magnet is the ideal choice for most applications.



Features:

  • Product Name: Alnico Permanet Magnet
  • Material: Cast Alnico
  • Max Operating Temperature: 550℃
  • Grade: Alnico 5, Alnico 8 Is Normally Used
  • Application: Generator, Microphone, Measuring Instrument
  • Hcj: ≥30 KA/m
  • Special Features: Alnico Rod Magnet, Alnico 8 Magnet


Technical Parameters:

Magnetic Properties Of Alnico Magnet

Grade

Equivalent MMPA Class

Remanence
Intrinsic
Coercivity

Coercivity

Maximum Energy Product
Density
Reversible Temp. Coefficient

Curie Temp.

Temp.Coefficient

Remark
    Br Hcj Hcb (BH)max g/cm3 α(Br) TC TW
    mT Gs KA/m Oe KA/m Oe KJ/m3 MGOe   %/℃
FLN8 Alnico3 520 5200 43 540 40 500 8-10 1.0-1.25 6.8 -0.02 760 450
Isotropic
FLNG12 Alnico2 700 7000 43 540 40 500 12-14 1.5-1.75 7 -0.014 810 450
FLNGT18 Alnico8 600 6000 107 1350 95 1200 18-22 2.25-2.75 7.2 -0.02 850 550
FLNGT28 Alnico6 1000 10000 57 710 56 700 28-30 3.5-3.8 7.2 -0.02 850 525
Anisotropic
FLNG34 Alnico5 1100 11000 51 640 50 630 34-38 3.5-4.15 7.2 -0.016 890 525
FLNGT31 Alnico8 780 7800 106 1130 104 1300 33-36 3.9-4.5 7.2 -0.02 850 550
FLNGT38 800 8000 126 1580 123 1550 38-42 4.75-5.3 7.2 -0.02 850 550
FLNGT42 880 8800 122 1530 120 1500 42-48 5.3-6.0 7.25 -0.02 850 550
FLNGT33J Alnico8HC 680 6800 151 1885 140 1750 33~36 4.1-4.5 7.2 -0.02 850 550
FLNGT40J 800 8000 156 1950 144 1800 43~47 5.4~5.9 7.2 -0.02 850 550


Applications:

UNMAG Alnico Permanent Magnet, with its brand name of UNMAG, has a place of origin of China. With a delivery time of 25-30 days, UNMAG Alnico Permanent Magnet is suitable for many applications, such as, Generator, Microphone, and Measuring Instrument. The max operating temperature of UNMAG Alnico Permanent Magnet is 550℃, and its Hcj is ≥30 KA/m, with a tolerance of ±0.05mm. UNMAG Alnico Permanent Magnet is available in different type of Alnico, such as Alnico9, Alnico5, and Alnico8. The BHmax of UNMAG Alnico Permanent Magnet is 1.13-9 MGOe.



Customization:

UNMAG Alnico Permanent Magnet
  • Brand Name: UNMAG
  • Place of Origin: China
  • Delivery Time: 25-30days
  • Tolerance: ±0.05mm
  • Application: Generator, Microphone, Measuring Instrument
  • Magnetization Direction: Axial, Radial, Multi-poles...
  • Hcj: ≥30 KA/m
  • Grade: Alnico 8, LNG37, Alnico 5 Is Normally Used


Packing and Shipping:

Alnico Permanent Magnet Packaging and Shipping Guidelines:

  • Magnets must be packaged in a sturdy box.
  • Each box must contain up to 5 magnets.
  • The boxes must be labeled with a printed label indicating the contents inside.
  • The shipping carrier must be notified of the magnets in the package.
  • A tracking number must be provided for each package.
  • The packages must be sealed with tape.
