| Brand Name: | UNMAG |
| MOQ: | 100pcs |
| Price: | As negotiation |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T L/C |

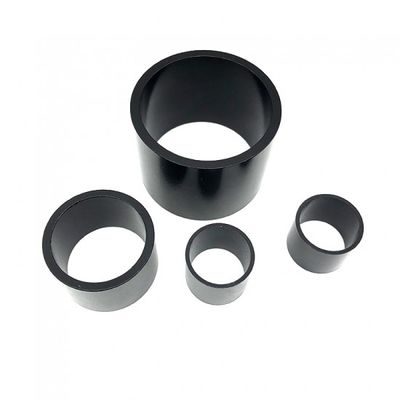

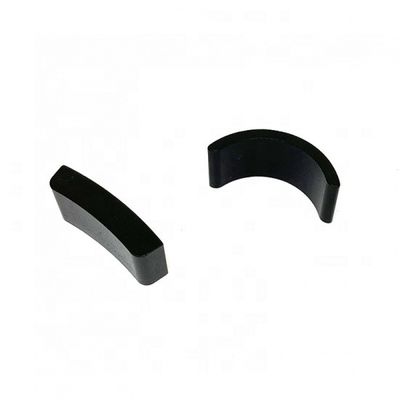

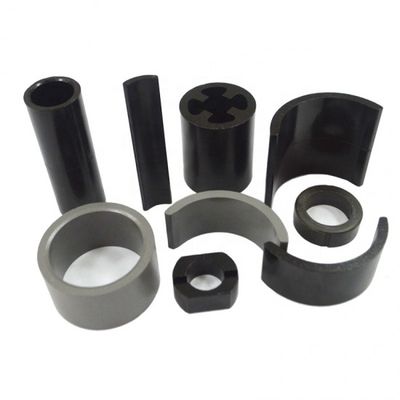

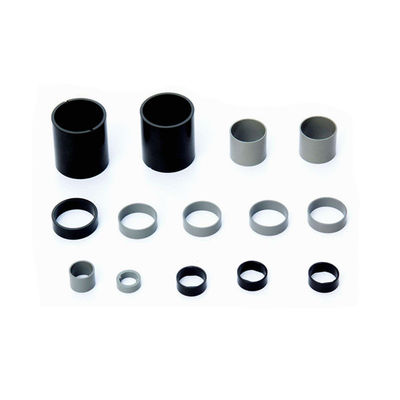

Bonded neodymium magnets, also known as bonded neo-magnets, are a type of permanent magnet made with neodymium, iron, and boron. They are manufactured using a pressing and sintering process and then bonded with a composite material. Thanks to their high coercivity, high remanence and low coercivity, bonded neodymium magnets are highly reliable and durable. They are available in various shapes such as disc, block, cylinder, ring, etc. and sizes that can be customized according to your requirements. The maximum operating temperature of these magnets is between 120°C-150°C and they can be magnetized in axial, radial or multi-poles direction. Bonded neodymium magnets are packed safely in carton boxes and pallets to make sure they reach you in perfect condition.
Physical Properties of Bonded Neodymium Magnet
| Parameter Name | Unit | Value |
| Density | g/cm³ | 4.0-6.5 |
| Curie Temperature | ℃ | 300-350 |
| Recoil Permeability | μrec | 1.2 |
| Temperature Coefficient | %/℃ | -0.17 |
| Hardness | Hv | 80-120 |
| Resistivity | Ω.cm | 0.026 |
| Compressive Strength | kgf/mm² | 3 |
| Flexural Strength | kg/mm² | 25 |
| Thermal Expansivity | 10-6/℃ | 1-2 |
Magnetic Characteristics and Physical Properties of Bonded Compression Moulding NdFeB
| Grade | Unit | BN-2 | BN-4 | BN-6 | BN-8L | BN-8 | BN-8SR | BN-10 | BN-10H | BN-12 | BN-12L | BN-13L |
| Remanence (Br) |
(mT) | 300-400 | 400-500 | 500-600 | 600-650 | 630-680 | 620-680 | 680-730 | 700-750 | 720-770 | 760-810 | 780-830 |
| Max. Energy Product (Hcb) |
(KA/m) | 240-320 | 240-320 | 320-400 | 360-440 | 400-480 | 400-480 | 400-480 | 440-520 | 440-520 | 400-480 | 400-480 |
| (KOe) | (3.0-4.0) | (3.0-4.0) | (4.0-5.0) | (4.5-5.5) | (5.0-6.0) | (5.0-6.0) | (5.0-6.0) | (4.5-6.5) | (5.5-6.5) | (5.0-6.0) | (5.0-6.0) | |
| Max. Energy Product (Hcj) |
(KA/m) | 480-640 | 560-720 | 560-720 | 640-800 | 640-800 | 880-1120 | 640-800 | 640-800 | 720-800 | 480-640 | 480-640 |
| (KOe) | (6.0-8.0) | (7.0-9.0) | (7.0-9.0) | (8.0-10.0) | (8.0-10.0) | (11.0-14.0) | (8.0-10.0) | (8.0-10.0) | (9.0-10.0) | (6.0-8.0) | (6.0-8.0) | |
| Max. Energy Product (BH max) |
(KJ/m3) | 24-32 | 32-44 | 52-60 | 60-68 | 68-76 | 68-76 | 76-84 | 80-88 | 88-96 | 88-96 | 88-104 |
| (MGOe) | (3.0-4.0) | (4.0-5.5) | (6.5-7.5) | (7.5-8.5) | (8.5-9.5) | (8.5-9.5) | (9.5-10.5) | (10.0-11.0) | (11.0-12.0) | (11.0-12.0) | (11.0-13.0) | |
| Recoil Permeability (ur) |
(μ H/M) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Tempetrature Coefficient | (%/℃) | -0.11 | -0.11 | -0.11 | -0.11 | -0.11 | -0.1 | -0.1 | -0.1 | -0.1 | -0.12 | -0.12 |
| Curie Temperature (Tc) |
(℃) | 300 | 300 | 300 | 300 | 350 | 350 | 350 | 350 | 350 | 320 | 320 |
| Max.Operating Temperature | (℃) | 160 | 160 | 160 | 160 | 160 | 180 | 160 | 160 | 160 | 150 | 150 |
| Max. Energy Product | (KA/m) | >1600 | >1600 | >1600 | >1600 | >1600 | >3000 | >1600 | >1600 | >1600 | >1600 | >1600 |
| (KOe) | >20 | >20 | >20 | >20 | >20 | >25 | >20 | >20 | >20 | >20 | >20 | |
| Density (ρ) |
(g/cm3) | 4.5-5.0 | 5.0-5.5 | 5.5-6.0 | 5.8-6.0 | 5.8-6.1 | 5.8-6.1 | 5.8-6.1 | 6.0-6.3 | 6.0-6.3 | 6.0-6.3 | 6.1-6.4 |
| Hardness | HRB | 40-45 | 40-45 | 40-45 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 | 35-38 |
Bonded-Neodymium Magnets, also known as Neodymium-Bonded Magnets, are the perfect choice for a variety of applications. Produced by UNMAG in China, they are available in 25-30days and come in a range of Grade, including BN-4, BN-6, BN-8, BN-10, and BN-12L. Customizable coatings such as Epoxy, Nickel, and Parylene are available, as well as magnetization direction including Axial, Radial, and Multi-poles. The Bonded Neodymium Magnet is available in a range of shapes, from Disc, Block, Cylinder, and Ring.
UNMAG provide customized bonded neodymium magnet solutions for all your needs, from disc, block, cylinder, ring, etc. to different grades, such as BN-4, BN-6, BN-8, BN-10, BN-12L. All of our bonded neodymium magnets are made with high-performance NdFeB alloy powder and coated with epoxy, nickel, parylene, etc. for maximum protection and performance.
We offer fast delivery within 25-30 days and different packaging options such as carton box, pallet, etc. All of our bonded neodymium magnets are sourced from China, so you can trust that you are receiving the highest quality products.
If you need custom-made bonded neodymium magnets, UNMAG is your ideal choice.
Packaging and Shipping for Bonded Neodymium Magnet
Bonded Neodymium Magnets will be packaged securely in small boxes or envelopes to ensure that it is not damaged during shipping. The boxes or envelopes will be sealed with tape to prevent any external damage. The magnets will be shipped in either USPS First Class Mail or Priority Mail, depending on the weight and size of the order.
|
|
